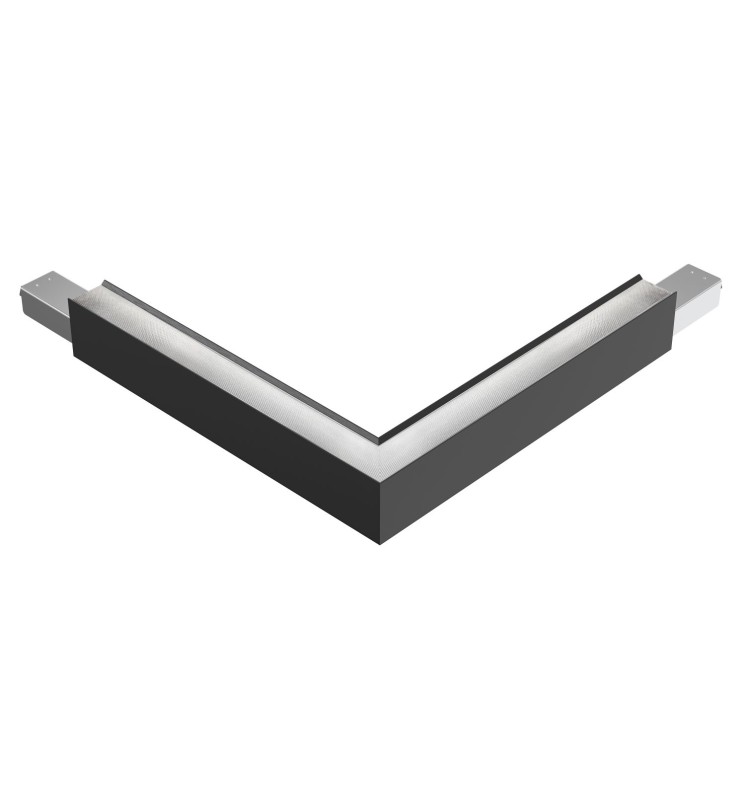

OFFICELINE-ANGLE-3CCT-PRISM-22W-DALI-BLACK

Data sheet

IP

IP20

IRC

>85

Dimmable

Yes

IK

IK06

Energy efficiency class

D

Warranty (years)

5

Total power (W)

22

Electric class

I

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

100

Luminous flux (lm)

2200, 2350, 2250

Color temperature

4000K, 3000K, 5500K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

450

Width (mm)

450

Height (mm)

72

Weight (kg)

0

Product color

Black

Use temperature range

-25°... +45°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

20

Body materials

Aluminium

Diffuser materials

PC PRISM

Life span duration

L70 à 25° : 50 000 h

Dimmable values

Dali, push dim

Network frequency

50Hz

Initial SDCM

SDCM< 4
