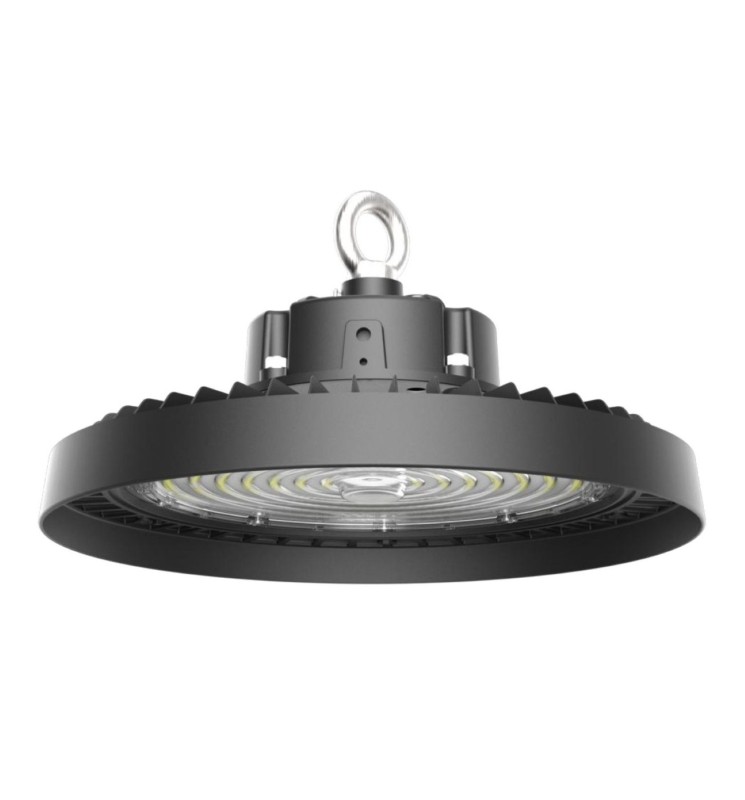

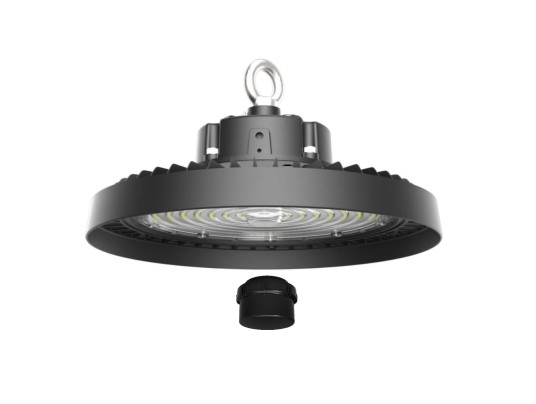

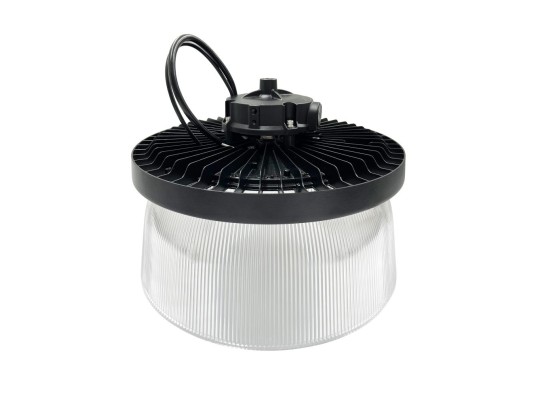

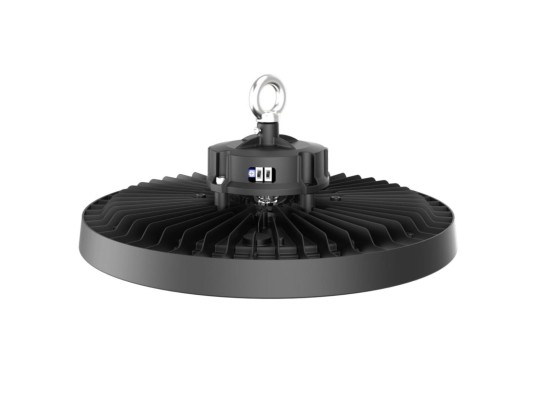

HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA
  • HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA
  • HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA
  • HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA
  • HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA

HIBAY PRO G2-3CCT-100-150-200W-IP66-190LMW-SOSEN-ZHAGA

BL000396
Hibay with LED Lumileds, 190lm/W! Save even more energy! Adapt wattage to suit your project. Armature with SOSEN power supply.
3 color temperatures! CEE eligible. Suitable for industrial environments.
BL000396
BE-LED

Data sheet

Only driver
IP
IP66
IRC
>80
Dimmable
Yes
IK
IK08
Energy efficiency class
D
Energy efficiency class
C
Warranty (years)
5
Total power (W)
100 / 150 / 200
Electric class
I
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
38000
Color temperature
5000K, 4000K, 3000K
Safety group (EN62778)
RG1
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
158
Weight (kg)
0
Product color
Black
Use temperature range
-40°... +50°C
Connection type
Fil à connecter
IP (value)
66
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70B10 : 100 000 h, L90B10 : 50 000 h
Cable length
30 cm
Dimmable values
yes with sensor accessory
Tilt angle
120
Network frequency
50Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
3
Max. lamp per B16A circuit breaker
5
Max. lamp per C16A circuit breaker
9
