OFFICELINE PRISM-28W-3CCT-NR
BL000403

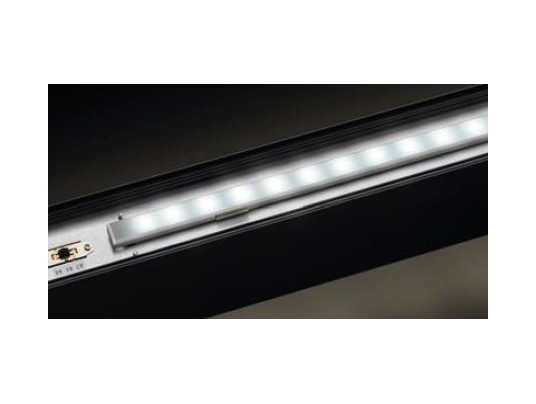

Aluminum LED suspension with color temperature change. Without prop: 100% live stream (downward). With accessory: 75% live; 25% indirect. Possible line-up with splice accessory.
BL000403
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 28
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 35
- Luminous flux (lm)
- 3650
- Color temperature
- 5700K, 4000K, 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1130
- Width (mm)
- 50
- Height (mm)
- 72
- Weight (kg)
- 0
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80B10 : 50 000 h
- Cable length
- 150 cm
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 8
- Max. lamp per B16A circuit breaker
- 12
- Max. lamp per C16A circuit breaker
- 16
Aluminum LED suspension with color temperature change. Without prop: 100% live stream (downward). With accessory: 75% live; 25% indirect. Possible line-up with splice accessory.
