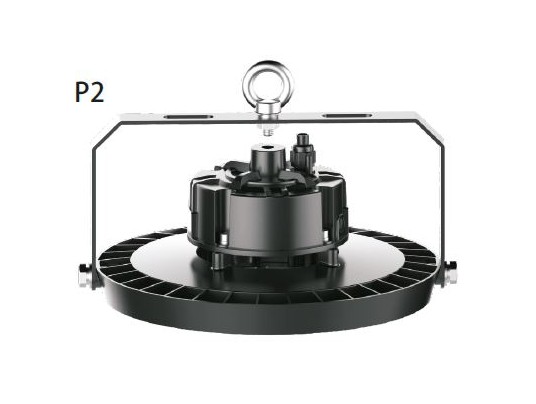

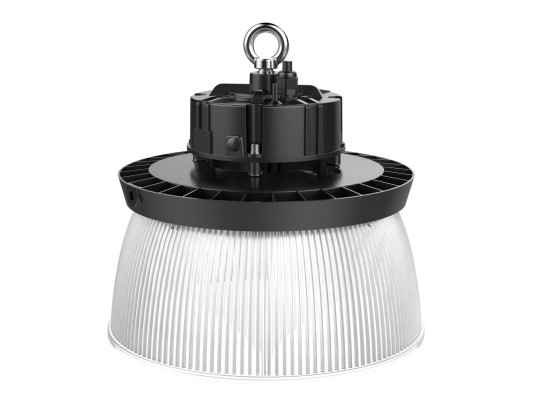

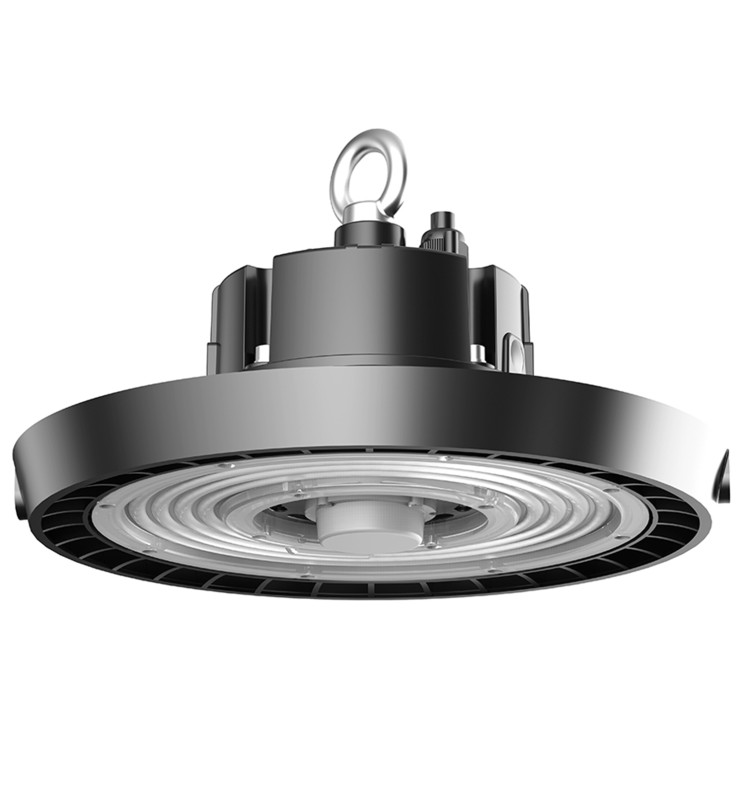

TF117-HIBAY PRO-100W-4000K-IP65-SOSEN
BL111006505
Led industrial frame, EEC eligible. Prepared to receive the BL08000021 HF motion and light detector. time delay setting
trigger setting relative to natural light
trigger setting relative to natural light
BL111006505
Data sheet
- IP
- IP65
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 100
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 5541
- Luminous flux (lm)
- 13500
- Color temperature
- 4000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 172
- Weight (kg)
- 2.74
- Product color
- Black
- Use temperature range
- -25°... +55°C
- Connection type
- Fil à connecter
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 30 cm
- Detector
- Haute fréquence
- Dimmable values
- yes with sensor accessory
- Tilt angle
- 120
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- UKCA certified
- Yes
