OFFICELINE PRISM-28W-3CCT-WHITE

PL06272004

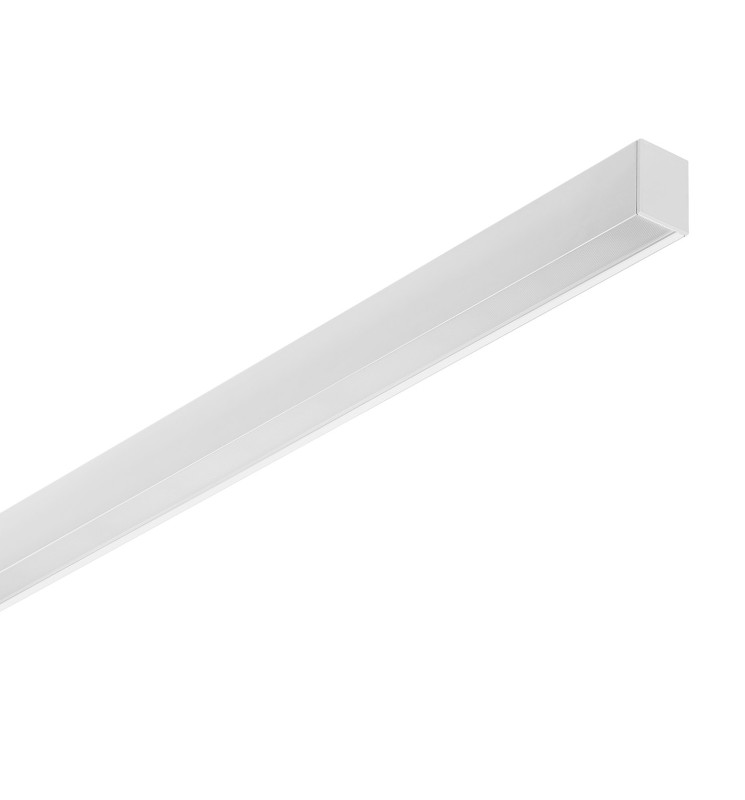

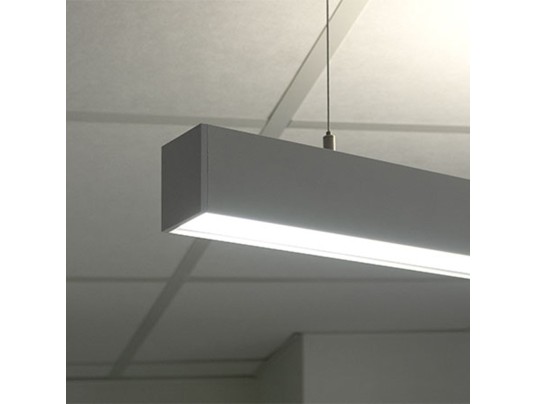

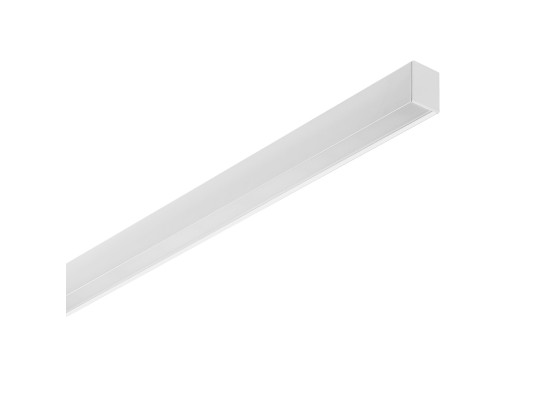

Aluminum LED pendant / ceiling lamp with color temperature change. Without prop: 100% live stream (downward). With accessory: 75% live; 25% indirect. Line up with optional splint.
PL06272004
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>85
Dimmable
Non
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
28
Electric class
I
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
100
Luminous flux (lm)
3000, 3200, 3150
Color temperature
4000K, 3000K, 5500K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Non
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1130
Width (mm)
50
Height (mm)
72
Weight (kg)
1.92
Product color
White
Use temperature range
-20°... +45°C
Connection type
Fil à connecter
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Cable length
130 cm
Recoverable
Non concerné
Network frequency
50Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
8
Max. lamp per B16A circuit breaker
12
Max. lamp per C16A circuit breaker
16
