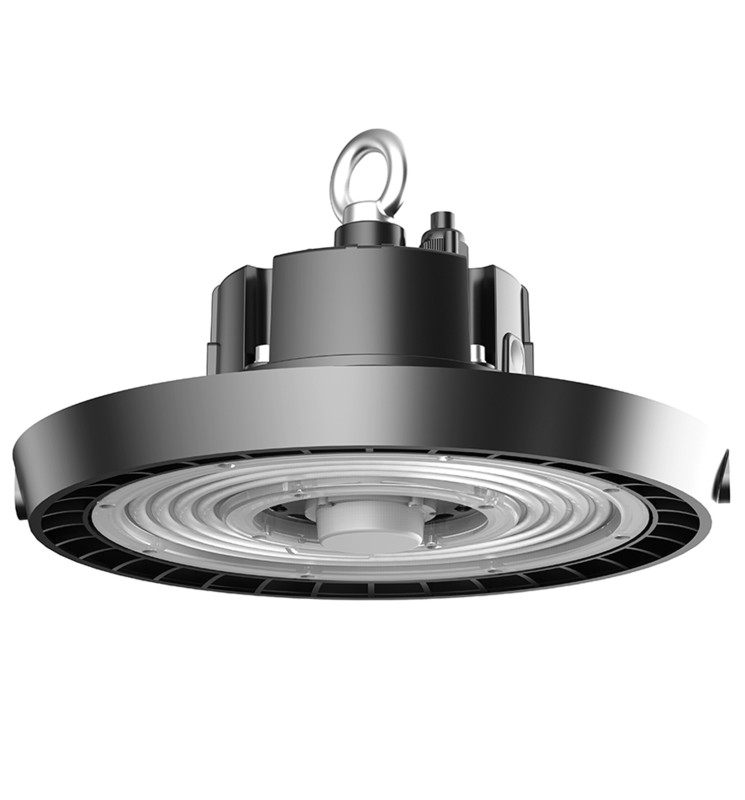

TF119-HIBAY TECH-150W-190lmW-4000K-IP65-1-10V SOSEN
BL112006504
Led industrial fitting, 190lm/W Save energy! Dimmable 1-10V. LED LUMILED L80 B20 - Optional SOSEN Dali ENEC driver
daylight sensor. detection zone and adjustable time delay
daylight sensor. detection zone and adjustable time delay
BL112006504
Data sheet
- Yes
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 150
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 27800
- Color temperature
- 4000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 172
- Weight (kg)
- 3.22
- Product color
- Black
- Use temperature range
- -25°... +55°C
- Connection type
- Fil à connecter
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 20 cm
- Dimmable values
- 1-10V
- Tilt angle
- 120
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 7
- Max. lamp per B16A circuit breaker
- 10
- Max. lamp per C16A circuit breaker
- 15
