MOONLIGHT-DIAM60-24/40W-3CCT-DALI-WHITE
BL02402003

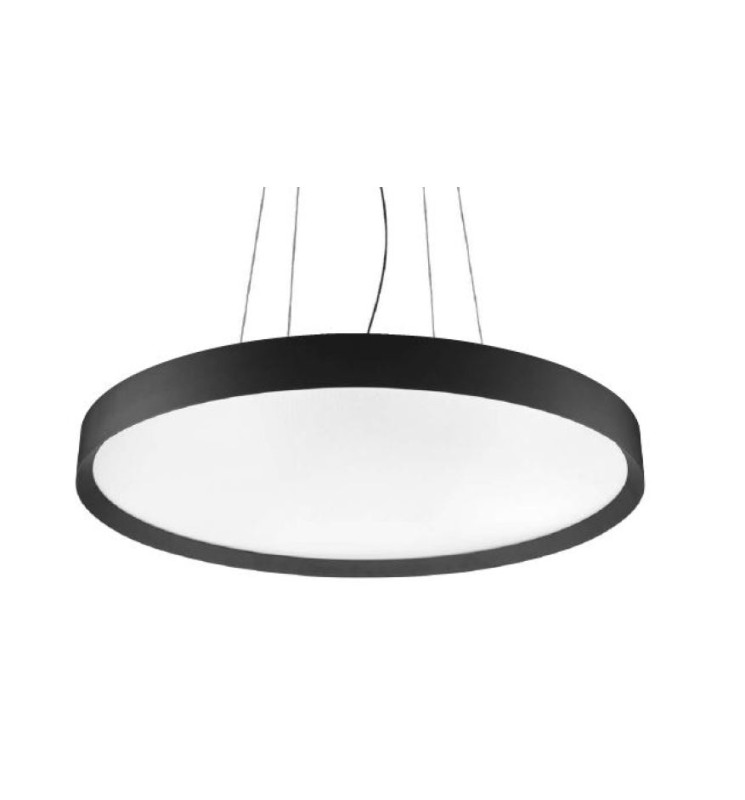

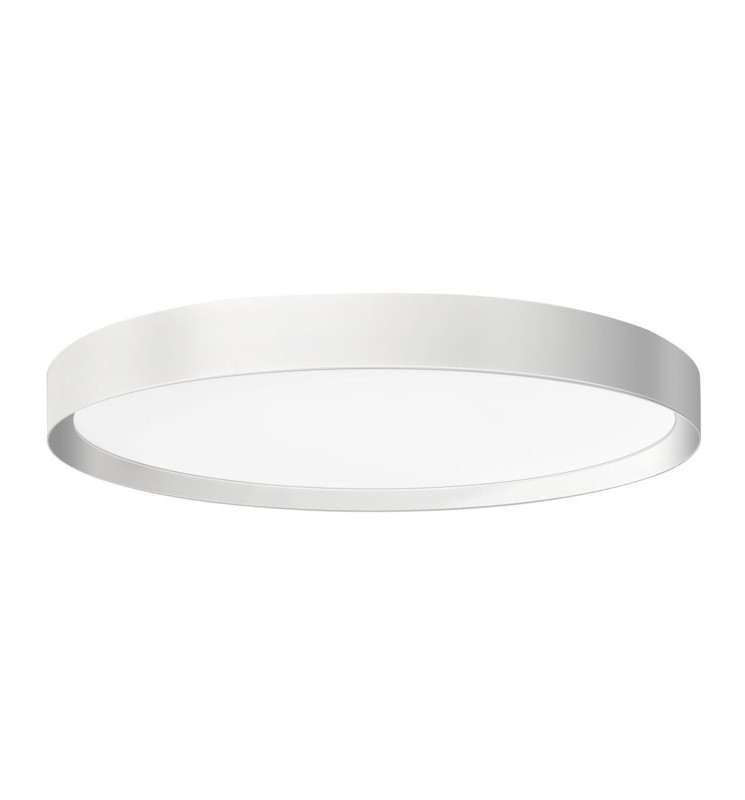

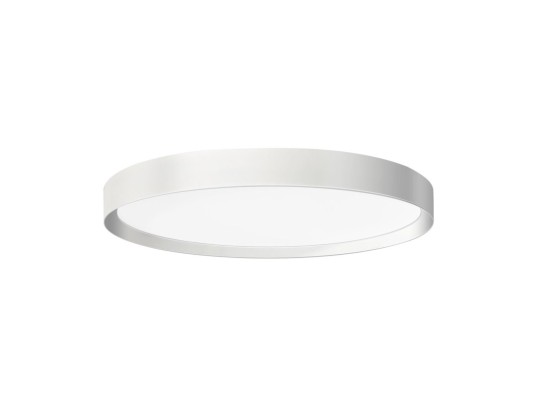

Surface-mounted or suspended LED ceiling light, ideal for architectural projects! Temperature change possible.

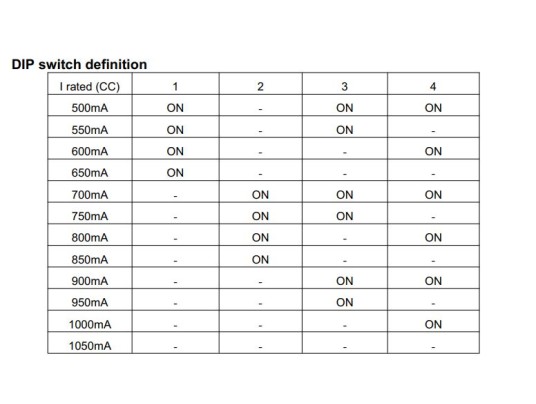

Prismatic diffuser. DALI Push-Dim driver, adjustable from 500 to 1050 mA, 12 levels.
Prismatic diffuser. DALI Push-Dim driver, adjustable from 500 to 1050 mA, 12 levels.
BL02402003
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK04
- IP (valeur)
- 44
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 24 / 30 / 36 / 40
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4800, 4500
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 80
- Weight (kg)
- 6.9
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L90B10 : 50 000 h
- Recoverable
- Non concerné
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 20
- Max. lamp per B16A circuit breaker
- 33
- Max. lamp per C16A circuit breaker
- 42
