TF158-SQUARE LIGHT-600X600-40W-2CCT-DALI-WHITE
BL02402005

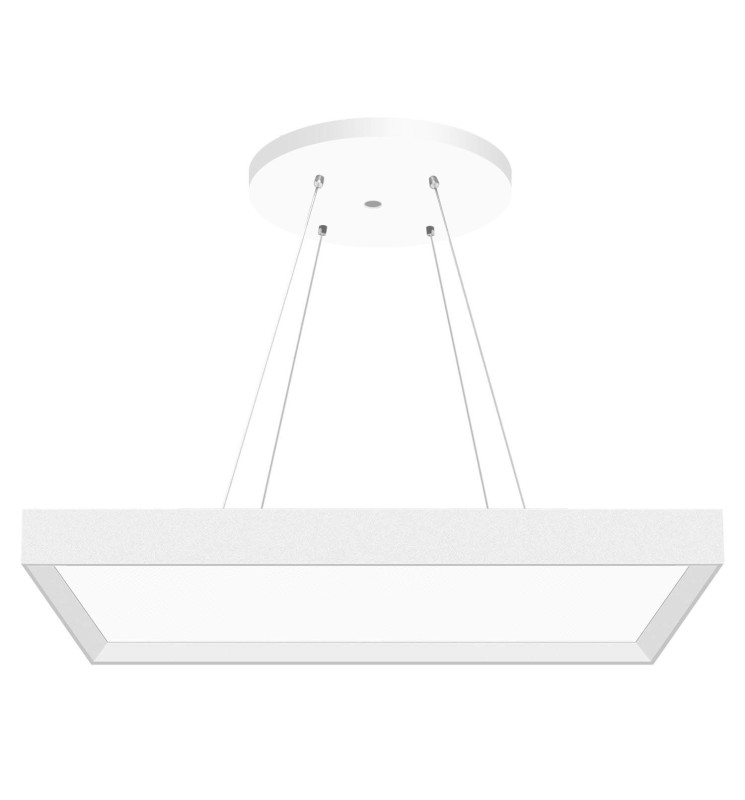

To be surface-mounted or suspended, ideal for architectural projects! Possible temperature change on the product. Thanks to its Dali Push Dim power supply, adapt the level of lighting to the work environment.
BL02402005
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK04
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 40
- Electric class
- III, I with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4000
- Color temperature
- 4000K, 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 80
- Weight (kg)
- 7.8
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L90 à 25° : 50 000 h
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
