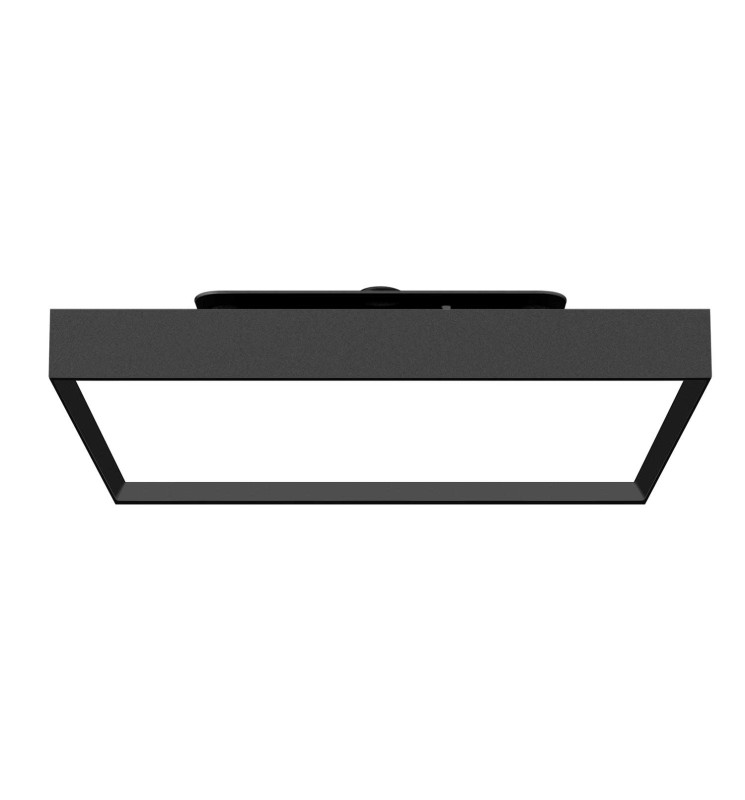

TF155-SQUARE LIGHT-300X300-15W-2CCT-DALI-BLACK
BL02152001
To be surface-mounted, ideal for architectural projects, corridors with concrete ceiling, reception hall. This luminaire allows a very homogeneous light distribution while being aesthetic. Dimmable in Dali or push dim
BL02152001
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK04
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 15
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 1500
- Color temperature
- 4000K, 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 300
- Width (mm)
- 300
- Height (mm)
- 80
- Weight (kg)
- 2.66
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L90 à 25° : 50 000 h
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
