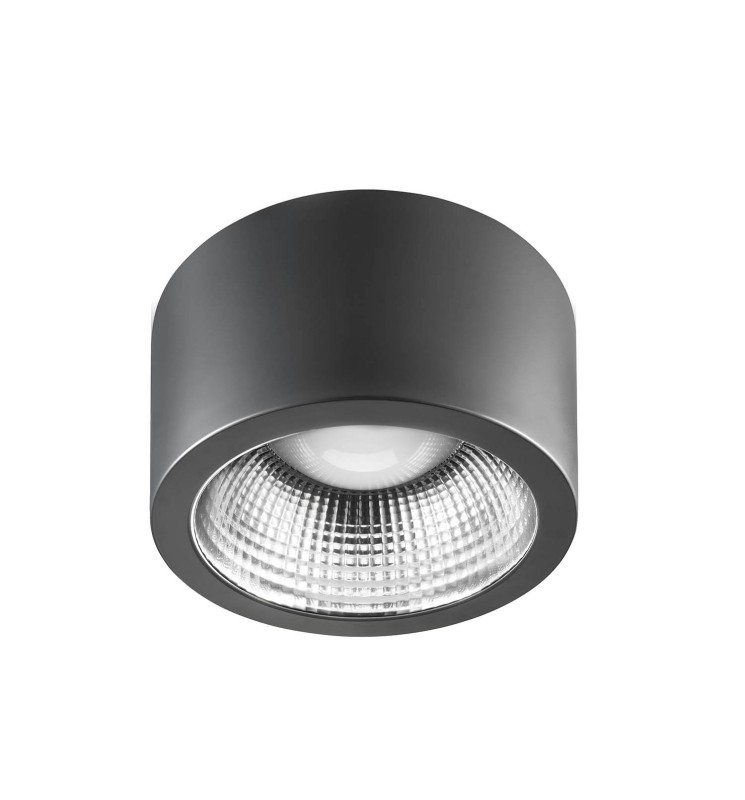

BARI DOWN SURFACE MOUNTED-152025W-3CCT-GREY

PL12155402

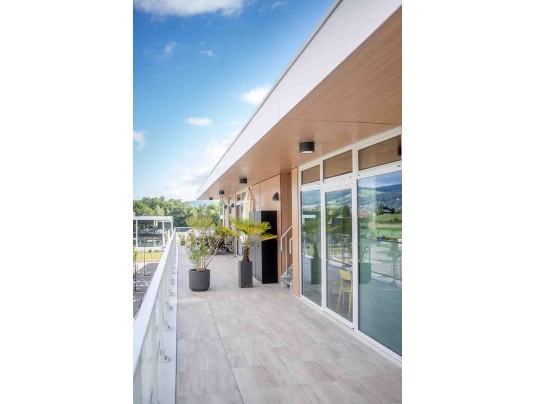

Surface-mounted IP54 luminaire in aluminium, 3 powers 15W, 20W or 25W with the same product and 3 color temperatures (9 products in 1!). Ideal on hard ceiling (exterior awnings, interior concrete slab, etc.)
PL12155402
BE-LED

Data sheet

Yes
IP
IP54
IRC
>80
Dimmable
Non
IK
IK08
Energy efficiency class
E
Warranty (years)
3
Total power (W)
15 / 20 / 25
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
90, 0% (With an installation that complies with anti-light pollution regulations)
Luminous flux (lm)
2000, 2280, 2160
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Tiltable
Non
Height (mm)
129
Weight (kg)
0.84
Product color
Dark gray
Use temperature range
-25... +40°
Connection type
Box with fast connector (L-N-PE)
IP (value)
54
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recoverable
Non concerné
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
