RAFALE SURFACE MOUNTED-15W-3CCT-WHITE-DIM
TR05152003

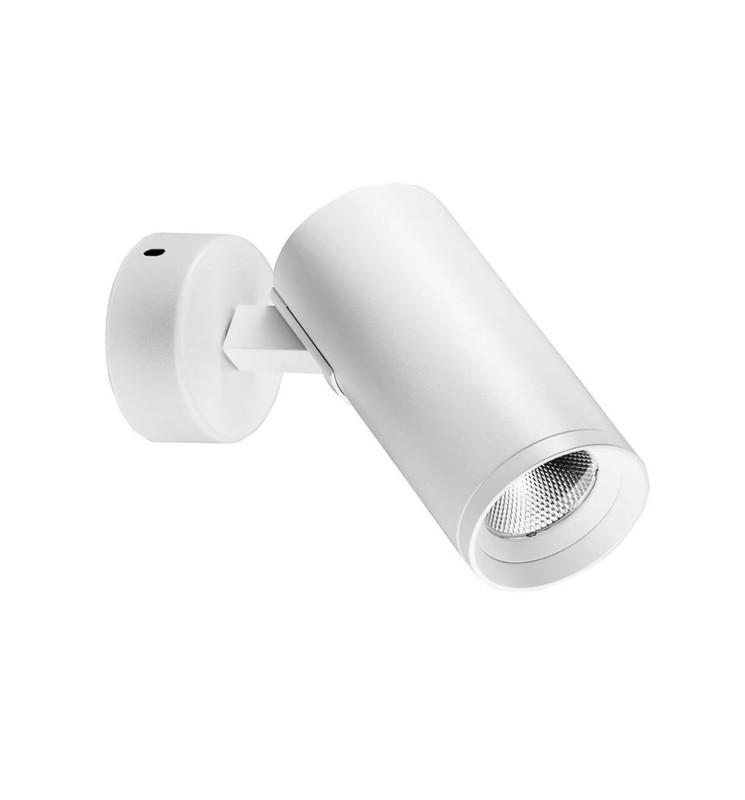

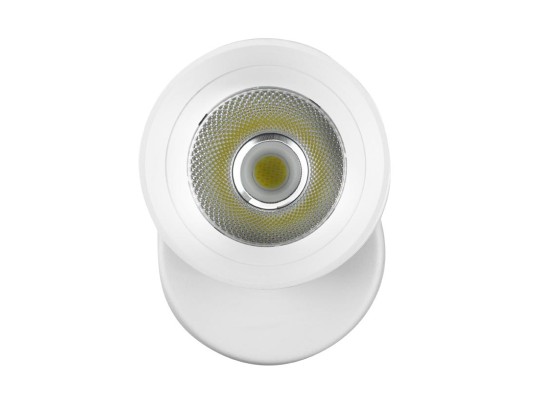

LED spotlight on aluminum bracket with color temperature change.
TR05152003
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 15
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 38
- Luminous flux (lm)
- 1300
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Tiltable
- Yes
- Length (mm)
- 156
- Width (mm)
- 70
- Height (mm)
- 70
- Weight (kg)
- 0.66
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 5 cm
- Recoverable
- Non concerné
- Dimmable values
- Triac
- Tilt angle
- 340
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
