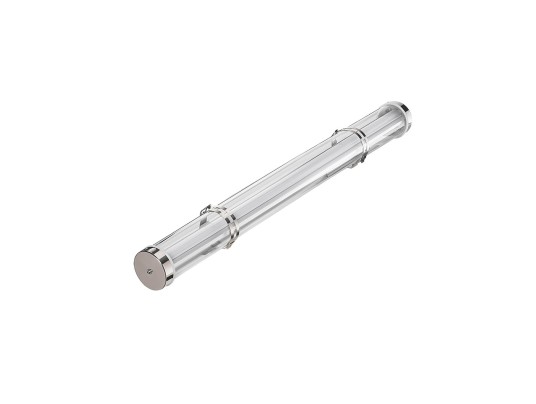

CYLINDER 600 DIAM100-30W-IP67-4000K-TRANSPARENT

TR11306701

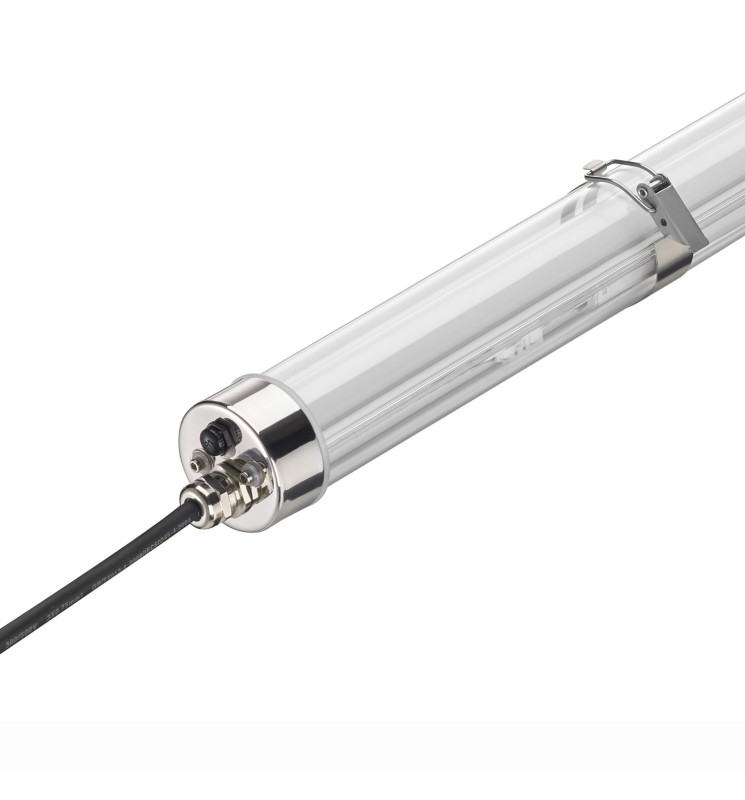

Waterproof tubular luminaire in polycarbonate and stainless steel. Suspended or projecting, it is both aesthetic and technical. Tridonic brand power supply
TR11306701
BE-LED

Data sheet

Yes
IP
IP65
IRC
>80
Dimmable
Non
IK
IK10
Energy efficiency class
D
Warranty (years)
5
Total power (W)
30
Electric class
I
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
2600
Color temperature
4000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Yes
Length (mm)
100
Width (mm)
630
Height (mm)
105
Weight (kg)
1.6
Use temperature range
-20... +45°
Connection type
Fil à connecter
IP (value)
65
Body materials
STAINLESS STEEL 316L, PC
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Cable length
50 cm
Tilt angle
360
Network frequency
50Hz
Initial SDCM
SDCM< 4
