OFFICELINE 120-BLACK-30W-3CCT-DALI-SUSPENDU OPAL

BL06272005

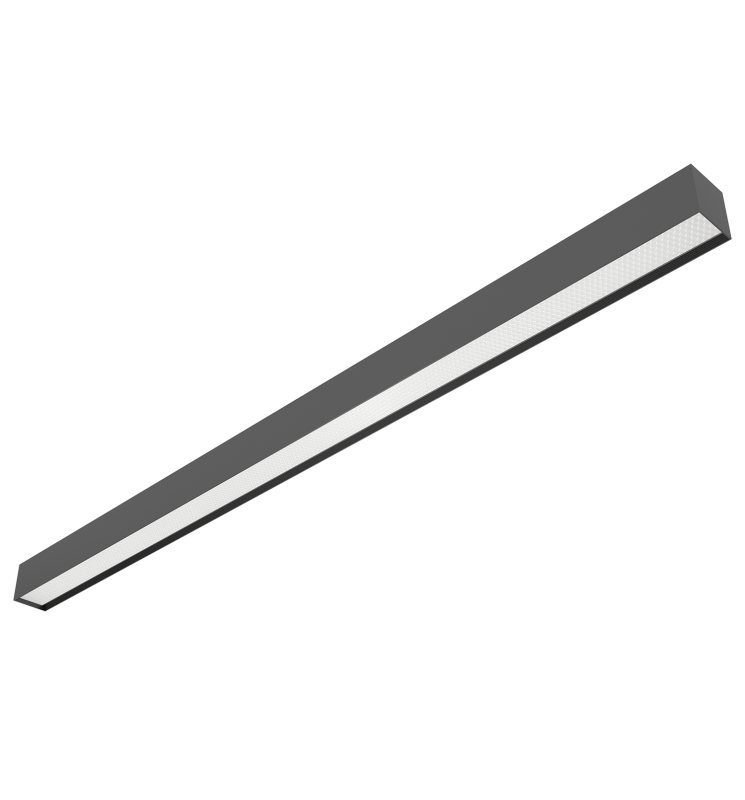

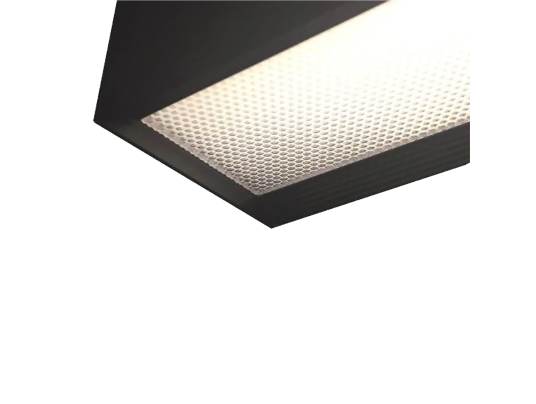

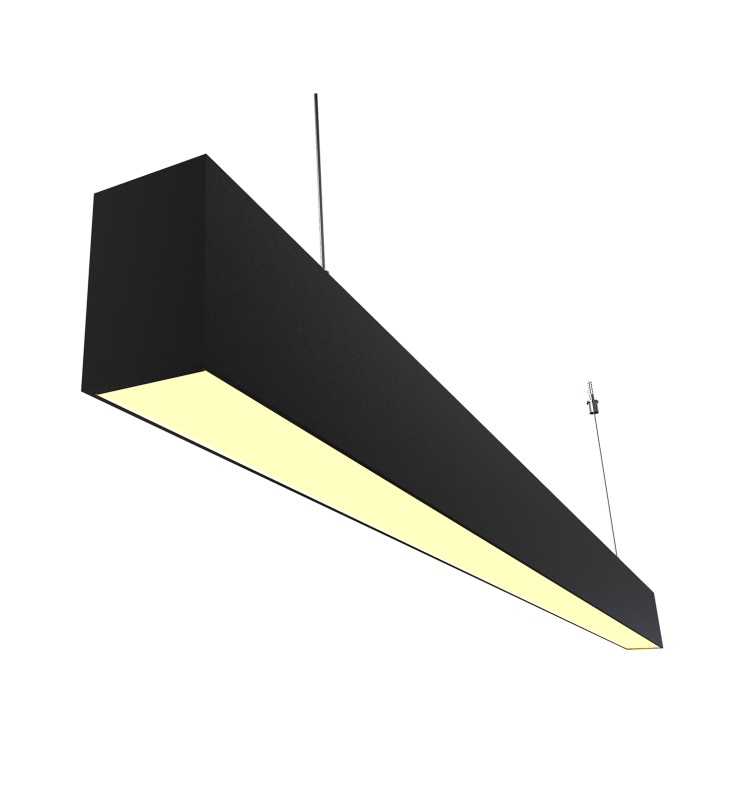

Suspended luminaire OFFICELINE black 3CCTdimmable DALI ideal for office lighting. Micro-prismatic opal diffuser
BL06272005
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>85
Dimmable
Yes
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
28
Electric class
I
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
100
Luminous flux (lm)
3000, 2800, 2900
Color temperature
4000K, 3000K, 5500K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1130
Width (mm)
50
Height (mm)
72
Weight (kg)
1.94
Product color
Black
Use temperature range
-20... +45°
Connection type
Fil à connecter
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC PRISM
Cable length
130 cm
Recoverable
Non recouvrable
Dimmable values
Dali, push dim
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
8
Max. lamp per B16A circuit breaker
12
Max. lamp per C16A circuit breaker
16
