OFFICELINE 120-WHITE-30W-3CCT-DALI-SUSPENDU OPAL
BL06272003

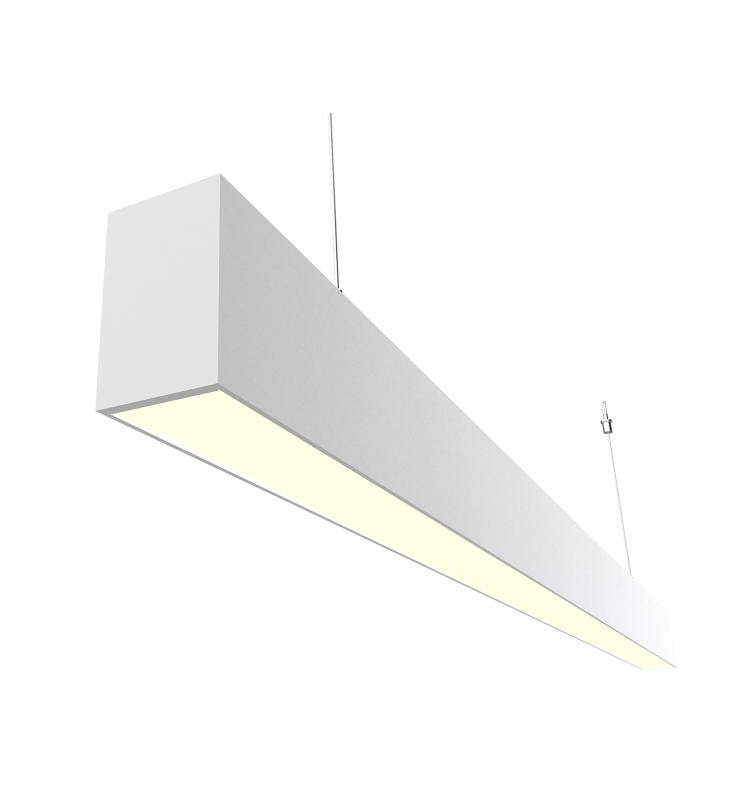

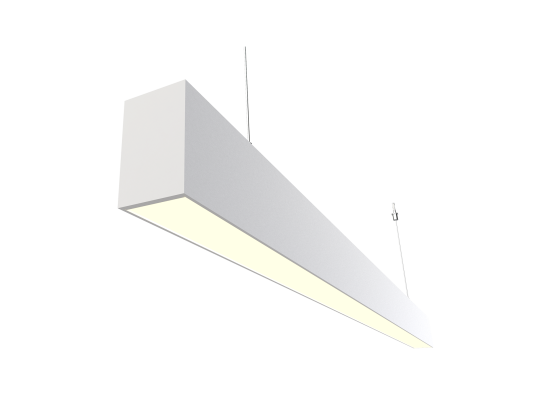

OFFICELINE white micro prismatic suspended luminaire 3CCT dimmable dali and push dim.
BL06272003
Data sheet
- IP
- IP40, IP20
- IRC
- >85
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 28
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 100
- Luminous flux (lm)
- 3250, 3150, 3000
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1135
- Width (mm)
- 50
- Height (mm)
- 72
- Weight (kg)
- 1.94
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 40, 20
- Body materials
- Aluminium
- Diffuser materials
- PC PRISM
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 130 cm
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 8
- Max. lamp per B16A circuit breaker
- 12
- Max. lamp per C16A circuit breaker
- 16
