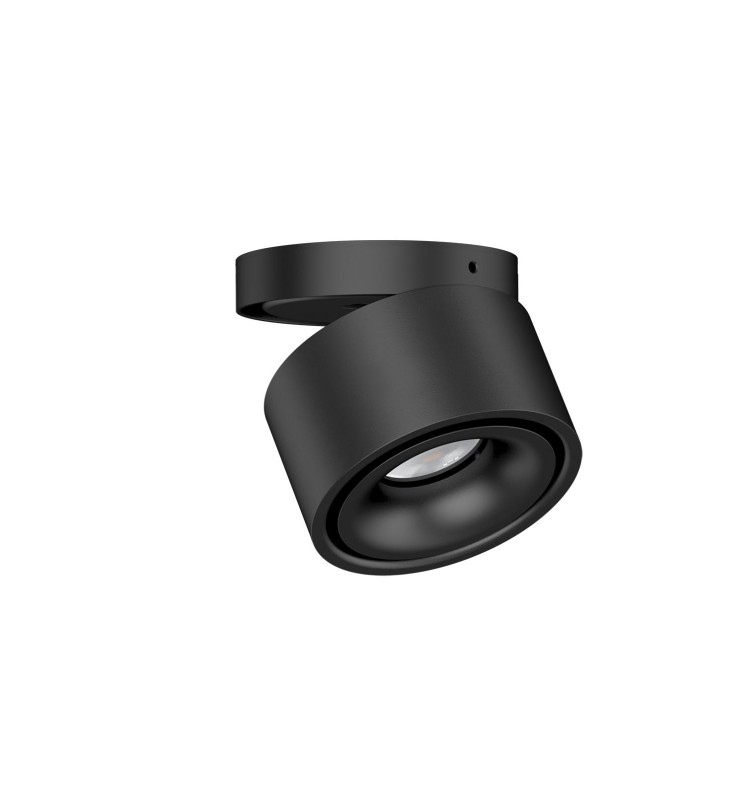

TILT II-RECESSED-10W-IP20-3CCT-BLACK-DIM
BL05102011
Aesthetic product, allows to direct the flow at 360°! 3CCT and dimmable, Available November 2022.
BL05102011
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 10
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 36
- Luminous flux (lm)
- 960
- Color temperature
- 4000K, 3000K, 6000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Height (mm)
- 100
- Weight (kg)
- 0.5
- Min. recessed diameter (mm)
- 85
- Max. recessed diameter (mm)
- 90
- Recessed diameter
- 85, 86, 87, 88, 89, 90
- Product color
- Black
- Use temperature range
- -25°... +45°C
- Connection type
- Fast connect
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 25
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Tilt angle
- 360
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
Aesthetic product, allows to direct the flow at 360°! 3CCT and dimmable, Available November 2022.
