CIRCULAR-40W-3CCT-DIAM600

BL06602001

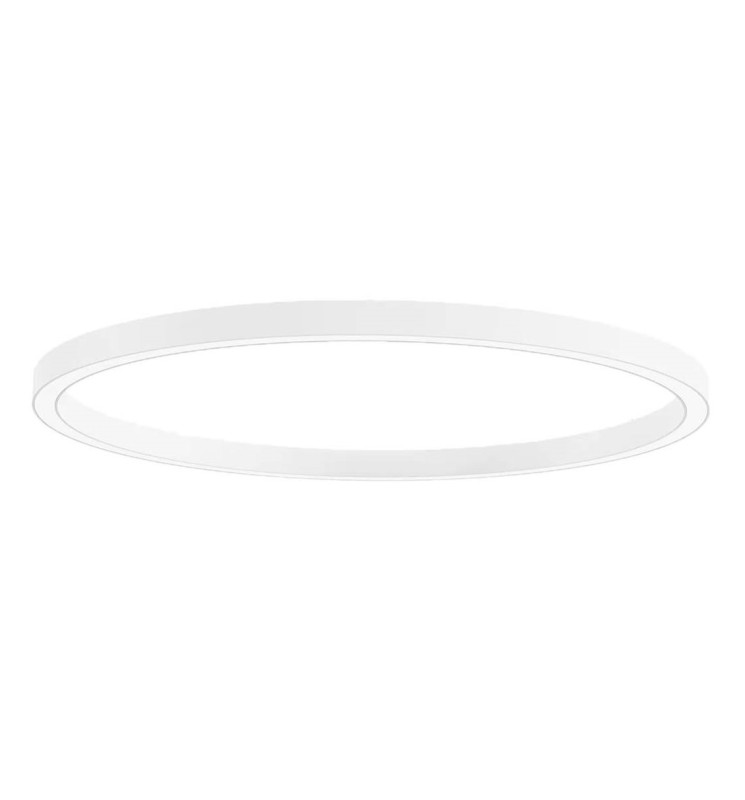

LED light circle, aluminum profile and PC diffuser. Suspended or ceiling mounted.
BL06602001
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>80
Dimmable
Yes
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
40
Electric class
III, I with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
4000, 4150
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Width (mm)
35
Height (mm)
35
Weight (kg)
2
Weight (kg)
2.86
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box DALI with fast connector (L-N-PE-DA1-DA2)
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80B20 à 25° : 50 000 h
Cable length
300 cm
Recoverable
Non concerné
Dimmable values
Dali, push dim
Network frequency
50Hz
Initial SDCM
SDCM< 4
