CIRCULAR-40W-3CCT-DIAM600

BL06602004

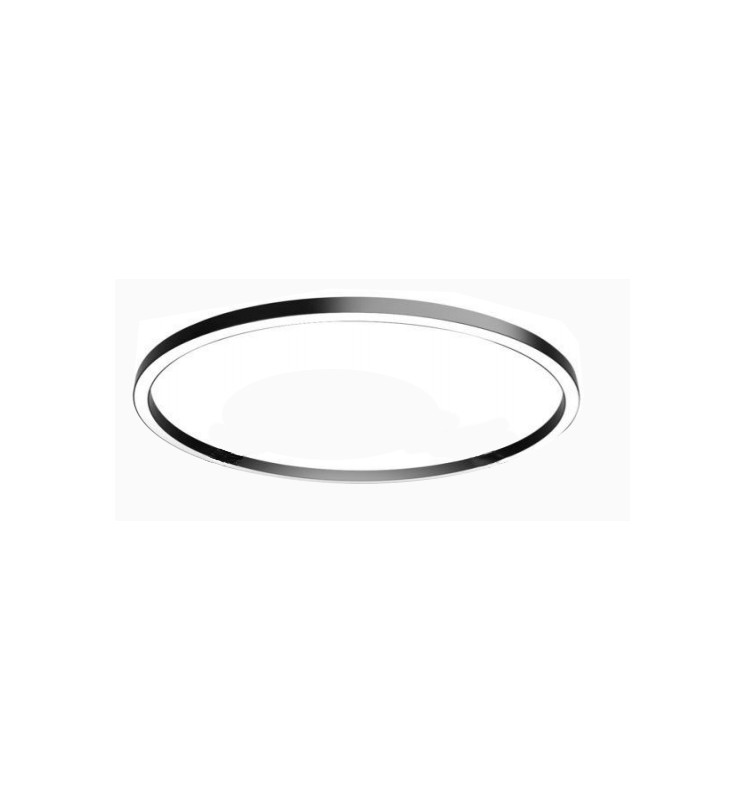

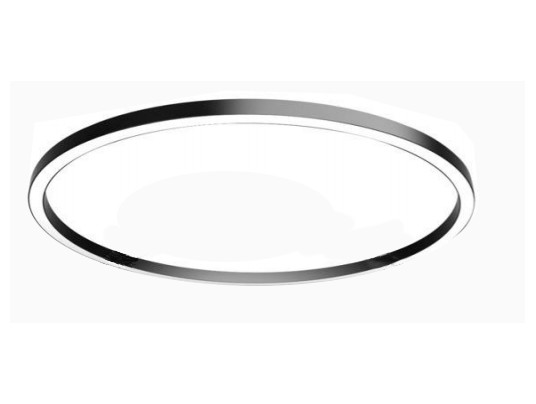

LED light circle, aluminum profile and PC diffuser. Suspended or ceiling mounted.
BL06602004
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>80
Dimmable
Yes
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
40
Electric class
II with power supply, III
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
3000, 3050
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Width (mm)
35
Height (mm)
35
Weight (kg)
2
Weight (kg)
2.86
Product color
Black
Use temperature range
-20... +45°
Connection type
Box DALI with fast connector (L-N-PE-DA1-DA2)
IP (value)
20
Body materials
Aluminium
Life span duration
L70 à 25° : 50 000 h
Cable length
300 cm
Recoverable
Non concerné
Dimmable values
Dali, push dim
Network frequency
50Hz
Initial SDCM
SDCM< 4
