OFFICELINE-ACC-ANGLE-3CCT-WHITE
BL000089

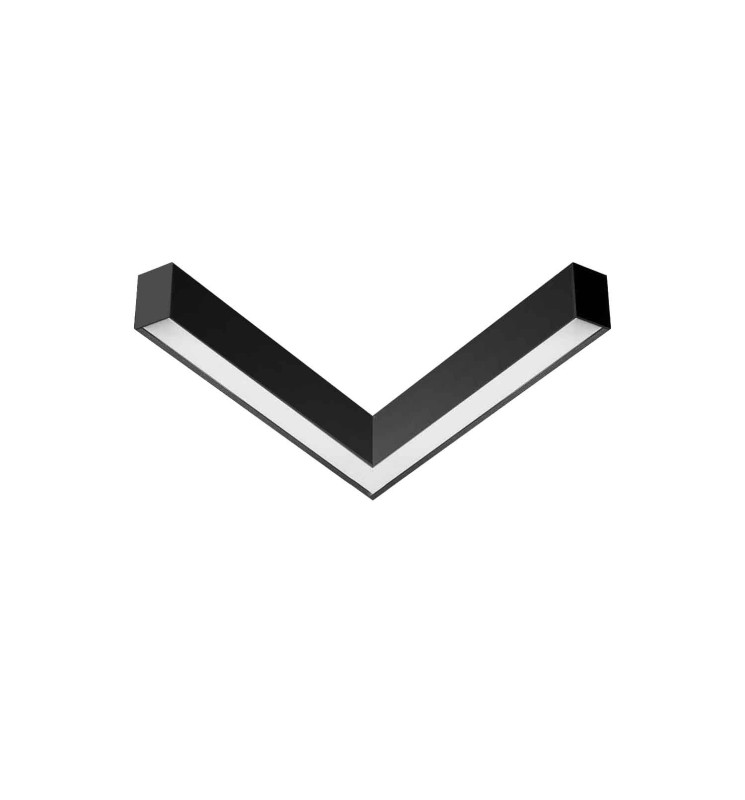

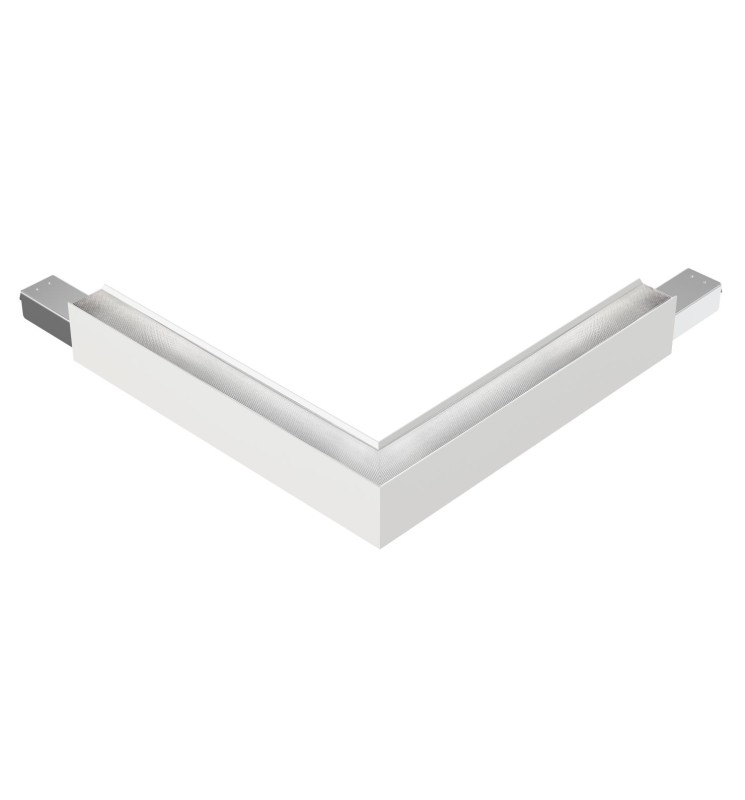

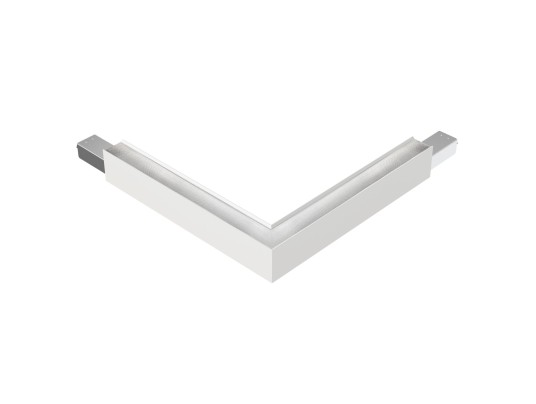

Corner accessory for Office Line. 3CCT.
BL000089
Data sheet
- IP
- IP20
- IRC
- >85
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 22
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 100
- Luminous flux (lm)
- 2450, 2350, 2550
- Color temperature
- 5500K, 4000K, 3000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 450
- Width (mm)
- 450
- Height (mm)
- 72
- Weight (kg)
- 1.62
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC PRISM
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 21
- Max. lamp per B16A circuit breaker
- 33
- Max. lamp per C16A circuit breaker
- 56
Corner accessory for Office Line. 3CCT.
