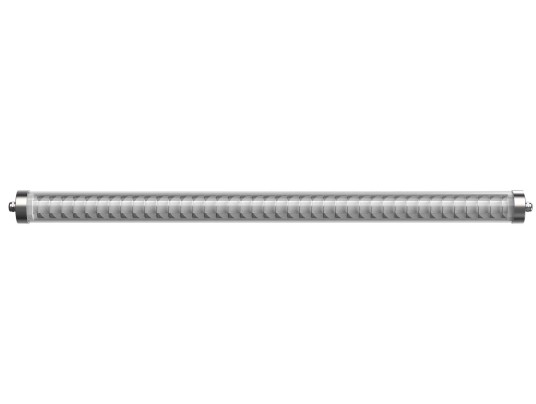

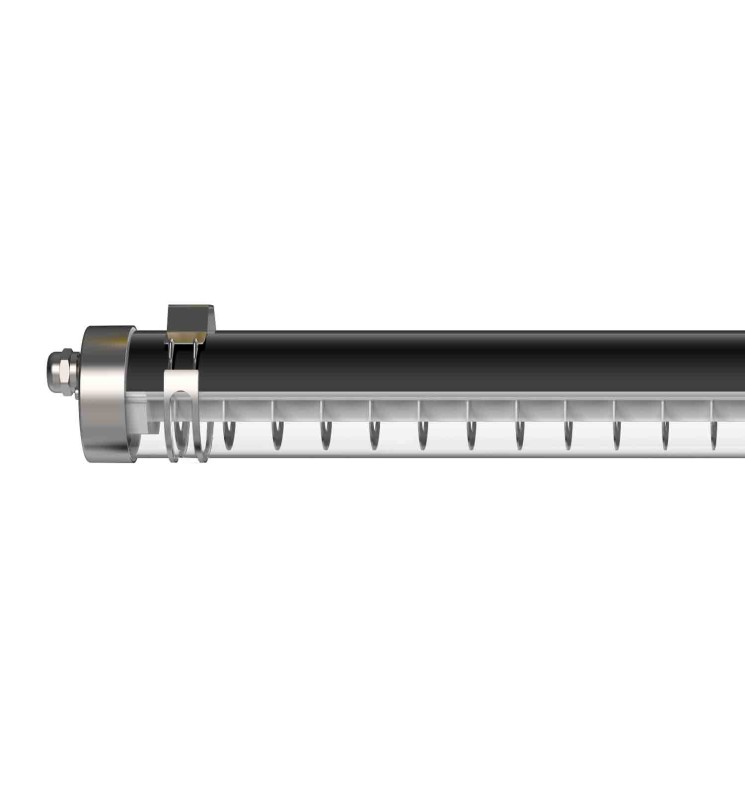

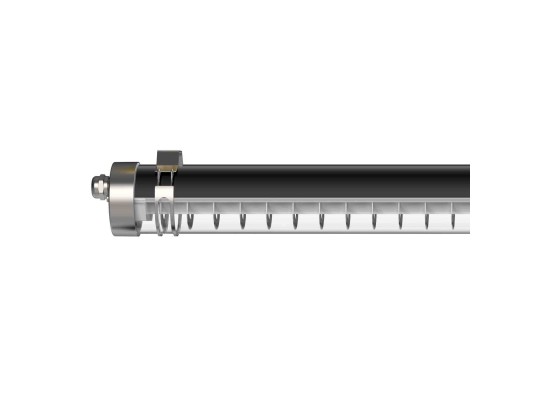

TUBE 120-23W-4000K-IP65

Data sheet

IP

IP65

IRC

>80

Dimmable

Non

IK

IK10

Energy efficiency class

B

Warranty (years)

5

Total power (W)

23 / 25 / 30 / 36

Electric class

I

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

95

Luminous flux (lm)

3100

Color temperature

4000K

Safety group (EN62778)

RG1

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

1170

Width (mm)

70

Height (mm)

70

Weight (kg)

2.4

Product color

Black

Use temperature range

-25°... +45°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

65

Body materials

PC

Diffuser materials

PC

Life span duration

L80B10 : 50 000 h

Recoverable

Non concerné

Network frequency

50Hz

Initial SDCM

SDCM< 4

Max. lamp per B10A circuit breaker

22

Max. lamp per B16A circuit breaker

35

Max. lamp per C16A circuit breaker

35
