TF153-MOONLIGHT-DIAM90-70W-2CCT-DALI-BLACK
BL02702001-old

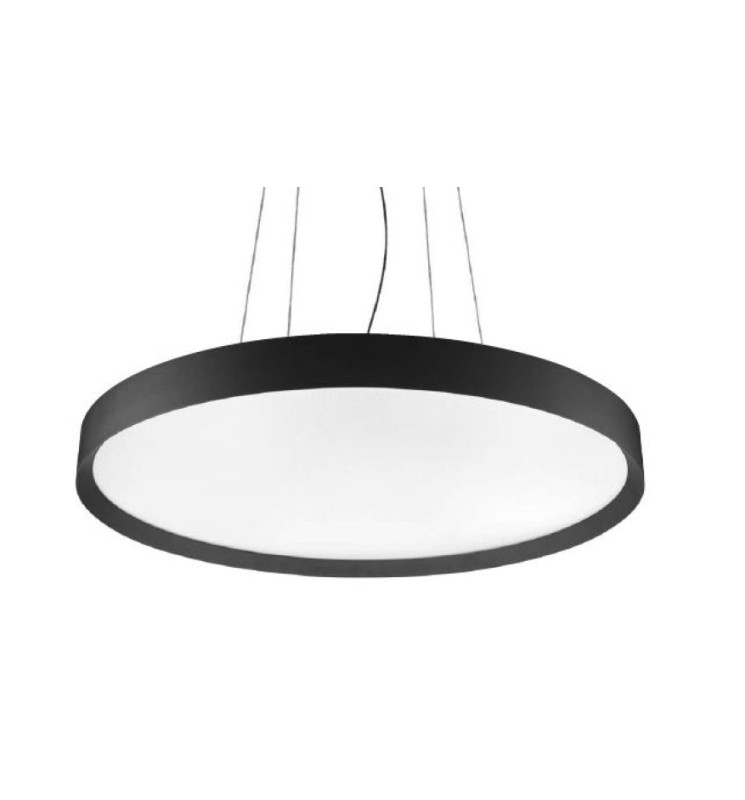

Surface-mounted or suspended LED ceiling light, ideal for architectural projects! Temperature change possible.
Thanks to its Dali Push Dim power supply, adapt the level of lighting to the work environment.
Thanks to its Dali Push Dim power supply, adapt the level of lighting to the work environment.
BL02702001-old
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK04
- IP (valeur)
- 54
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 70
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 7500
- Color temperature
- 4000K, 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 80
- Weight (kg)
- 13.7
- Product color
- Black
- Use temperature range
- -20... +45°
- Connection type
- Fil à connecter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L90 à 25° : 50 000 h
- Dimmable values
- Dali, push dim, 1-10V
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
