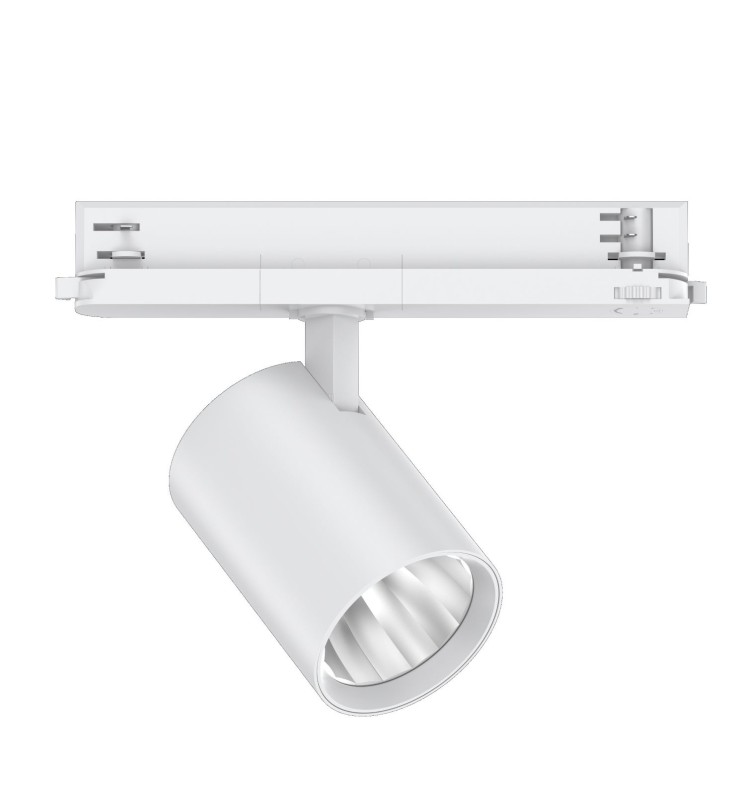

RAFALE 3ALL-3CCT-38W-DALI-WHITE
BL000410
BL000410
Data sheet
- IP
- IP20
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 38
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 4400, 4600, 4200
- Color temperature
- 4000K, 3000K, 2700K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Length (mm)
- 140
- Width (mm)
- 238
- Height (mm)
- 200
- Weight (kg)
- 0
- Product color
- White RAL9016
- Use temperature range
- -20°... +40°C
- Connection type
- For 3-way DALI rail adapter
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L80B10 : 50 000 h
- Recoverable
- Non concerné
- Dimmable values
- Dali, push dim
- Tilt angle
- 360
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 9
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 24
