RAFALE 3 ALL-30W-3CCT-IP20-WHITE-DIM
TR07302004

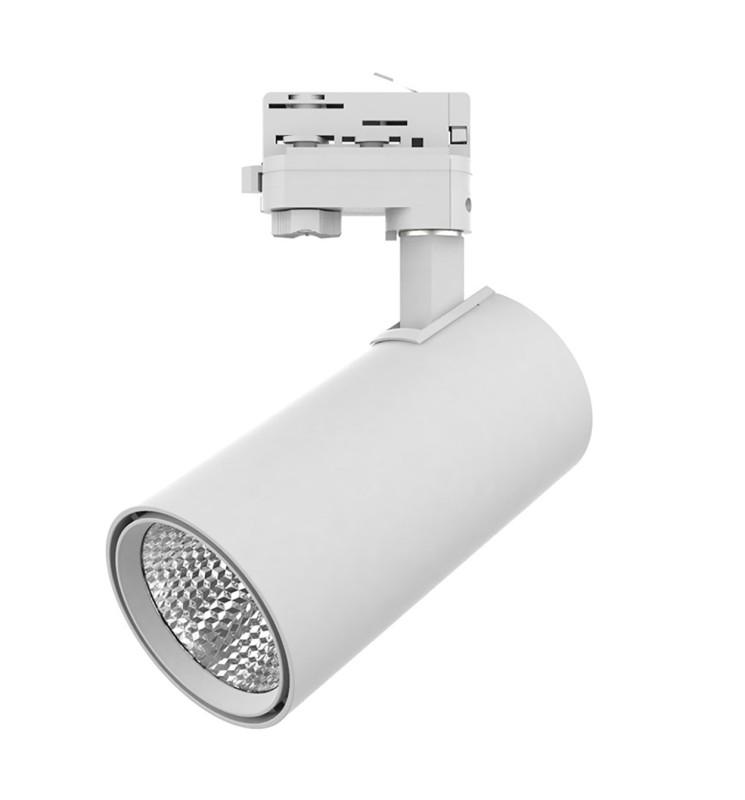

Track-mounted LED spotlight with color temperature change. Aluminum body. Ideal for general or accent lighting.
Naturally anti-glare does not require a honeycomb grid.
Naturally anti-glare does not require a honeycomb grid.
TR07302004
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08

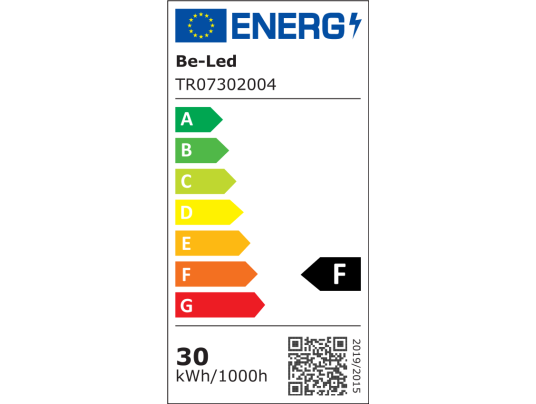

- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 30
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 38
- Luminous flux (lm)
- 2350
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Length (mm)
- 189
- Width (mm)
- 90
- Height (mm)
- 90
- Weight (kg)
- 1.02
- Product color
- White
- Use temperature range
- -20°... +40°C
- Connection type
- Adaptor 4 wires track light
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non concerné
- Dimmable values
- Triac
- Tilt angle
- 350
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
