BROAD 3 ALL-30W-4000K-IP20-ASYM BLACK-DIM

TR07302009

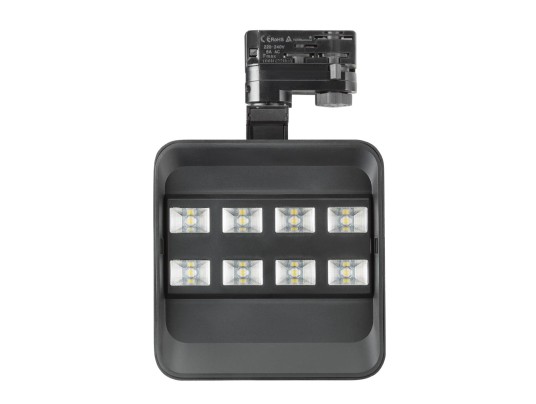

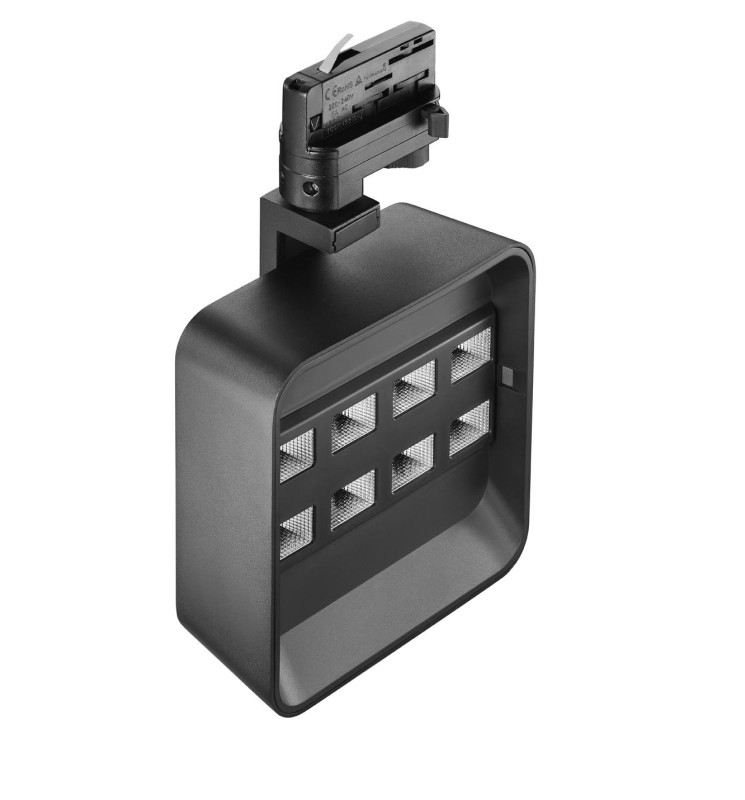

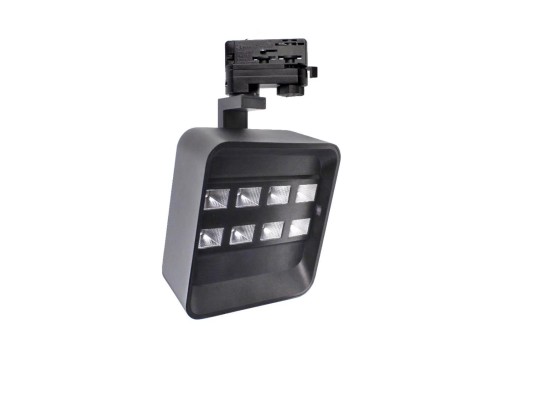

LED spotlight for track 3 asymmetrical lighting in aluminium. Its very extensive lighting (35° X 75°)

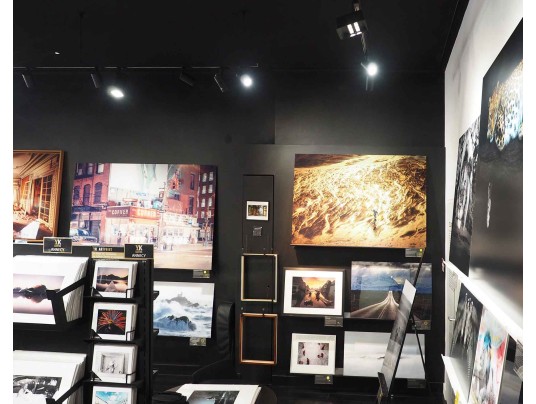

illuminates a surface evenly. Ideal for exhibitions, museums, shops where regular wall lighting is desired.
TR07302009
BE-LED

Data sheet

Yes
IP
IP20
IRC
>90
Dimmable
Non
IK
IK06
Energy efficiency class
F
Warranty (years)
5
Total power (W)
30
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
75
Luminous flux (lm)
3000
Color temperature
4000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Yes
Length (mm)
166
Width (mm)
78
Height (mm)
172
Weight (kg)
1.2
Product color
Black
Use temperature range
-20... +45°
Connection type
Adaptor 4 wires track light
IP (value)
20
Body materials
Aluminium
Life span duration
L70 à 25° : 50 000 h
Tilt angle
350
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
