ZOOM 3 ALL-30W-3CCT-IP20-BLACK-DIM
PL07302003

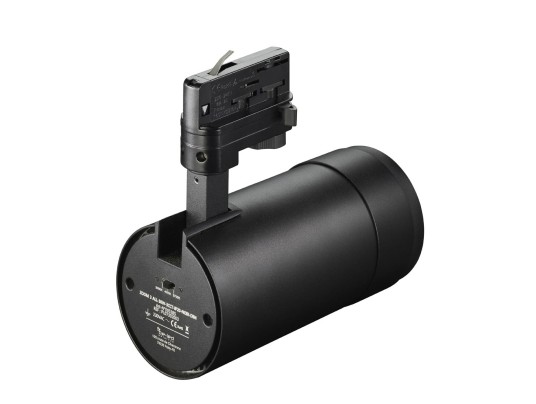

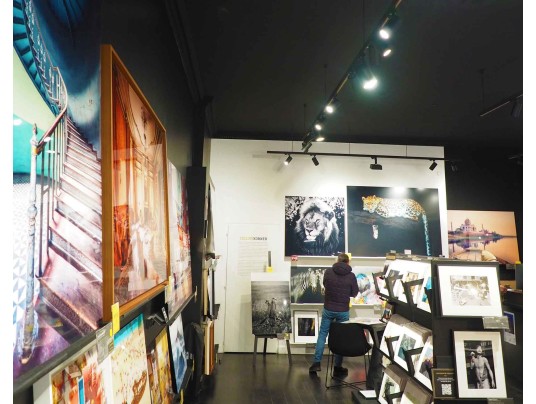

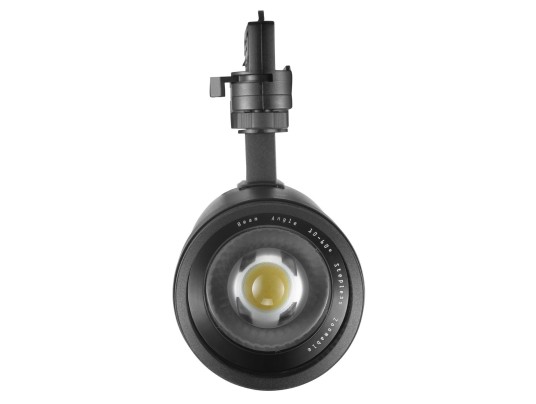

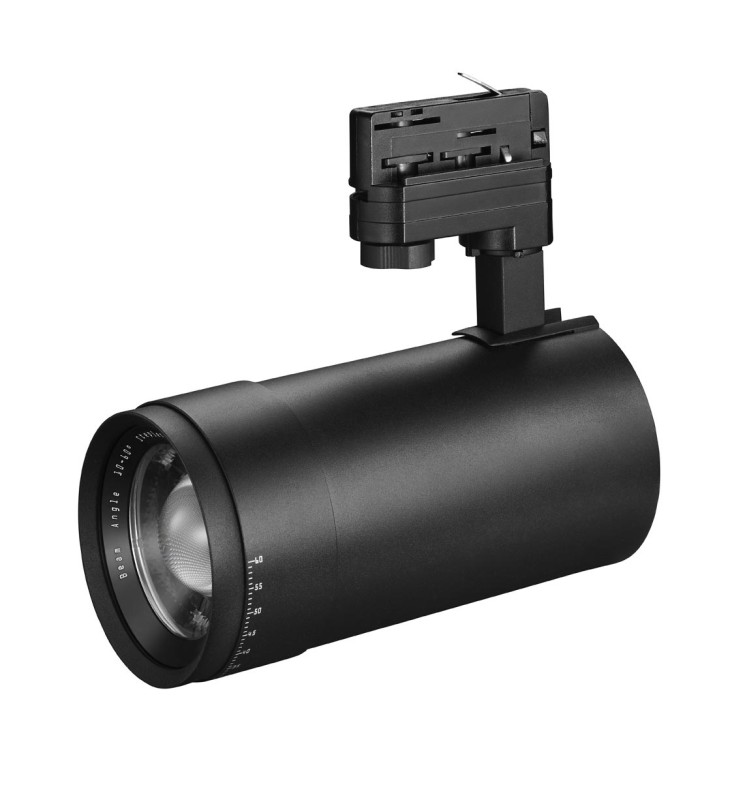

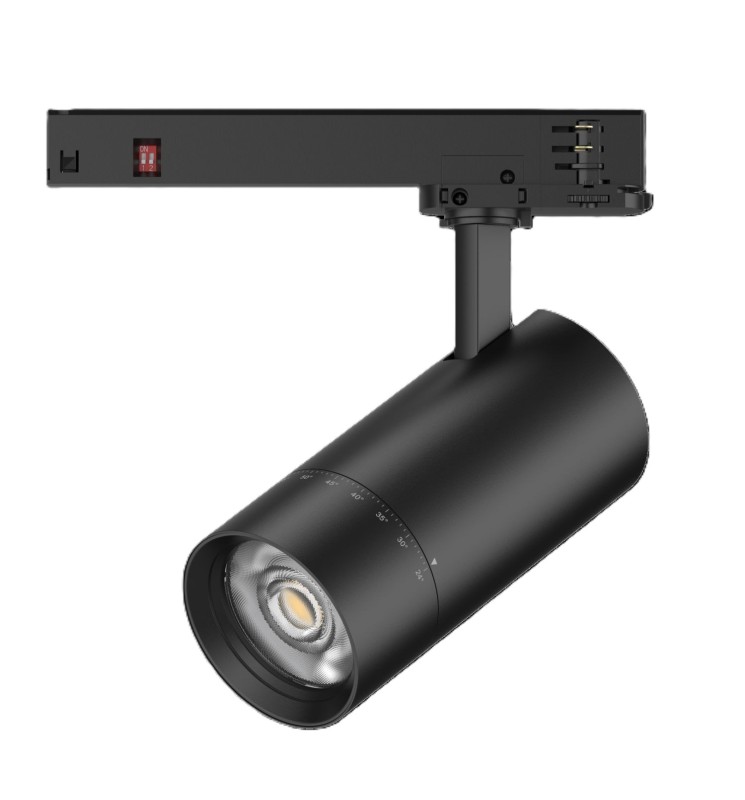

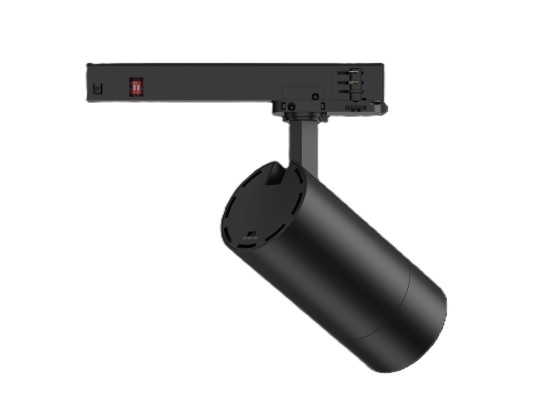

Aluminum CCT projector with adjustable focus allowing adjustment of the opening angle from 10° to 60° Exhibition, showcase, shop.
Focal adjustment (same as camera) to adapt to the medium to be illuminated or the desired light effect.
Focal adjustment (same as camera) to adapt to the medium to be illuminated or the desired light effect.
PL07302003
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 28
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 10
- Luminous flux (lm)
- 2000
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Length (mm)
- 191
- Width (mm)
- 90
- Height (mm)
- 90
- Weight (kg)
- 1.18
- Product color
- Black
- Use temperature range
- -20°... +40°C
- Connection type
- Adaptor 4 wires track light
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Tilt angle
- 350
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
Aluminum CCT projector with adjustable focus allowing adjustment of the opening angle from 10° to 60° Exhibition, showcase, shop.
Focal adjustment (same as camera) to adapt to the medium to be illuminated or the desired light effect.
Focal adjustment (same as camera) to adapt to the medium to be illuminated or the desired light effect.
