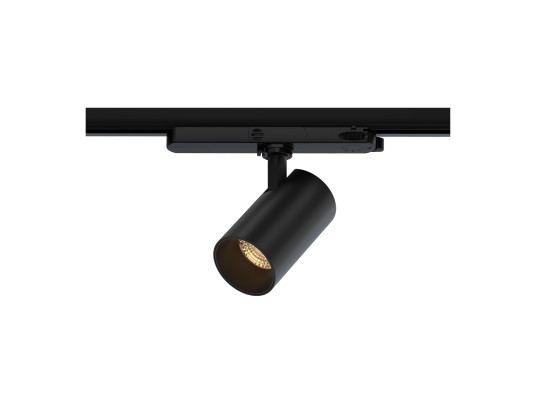

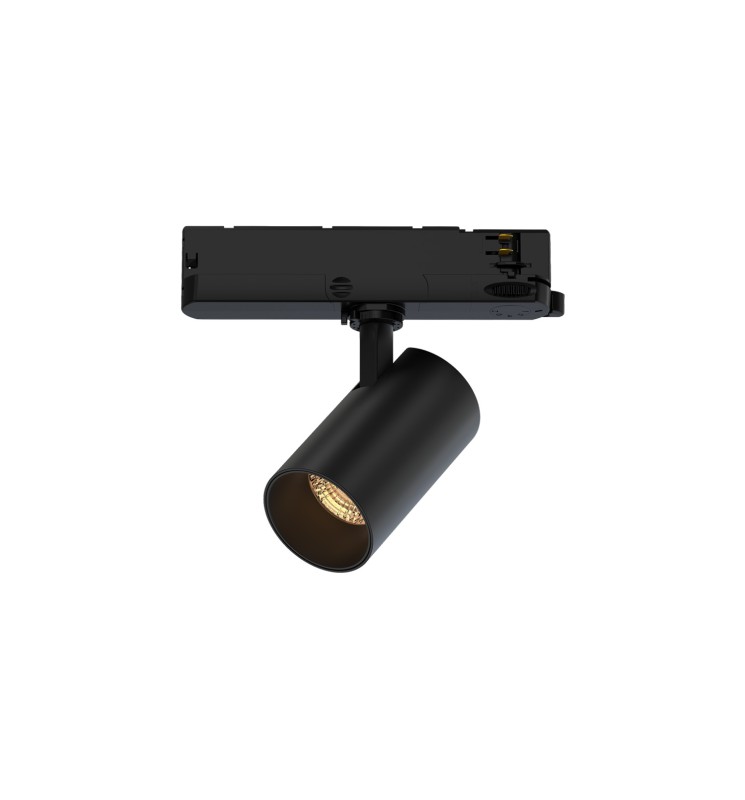

RAFALE 3ALL 3CCT-6W-10W-15W-DIM BLACK
BL07152001
Projector 3 ignitions, 3 temperature colors and 3 powers to be selected on the product! Real flexibility for installation.
Triac dimmable. Also available from 25W to 35W, white or black
Triac dimmable. Also available from 25W to 35W, white or black
BL07152001
Data sheet
- Yes
- IP
- IP20
- IRC
- >90
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 6 / 10 / 15
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 1200, 1050
- Color temperature
- 4000K, 3000K, 3500K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Length (mm)
- 105
- Height (mm)
- 100
- Weight (kg)
- 0.38
- Product color
- Black
- Use temperature range
- -10°... +35°C
- Connection type
- Adaptor 4 wires track light
- IP (value)
- 20
- Body materials
- Aluminium, Iron
- Diffuser materials
- PMMA
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non concerné
- Dimmable values
- Triac
- Tilt angle
- 360
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- UKCA certified
- Yes
