RAFALE 3ALL 3CCT-25W-30W-35W-DIM BLACK
BL07302001

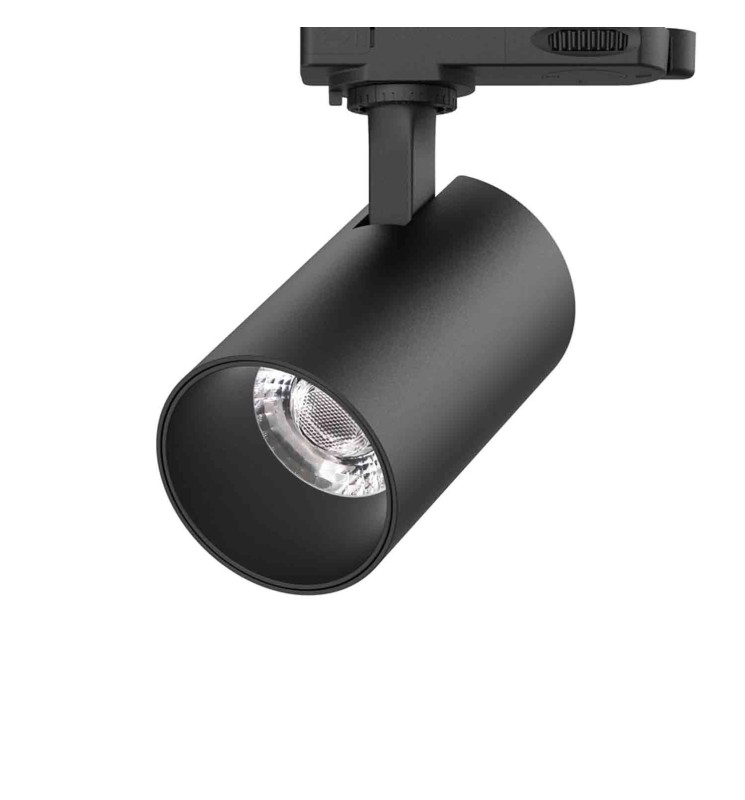

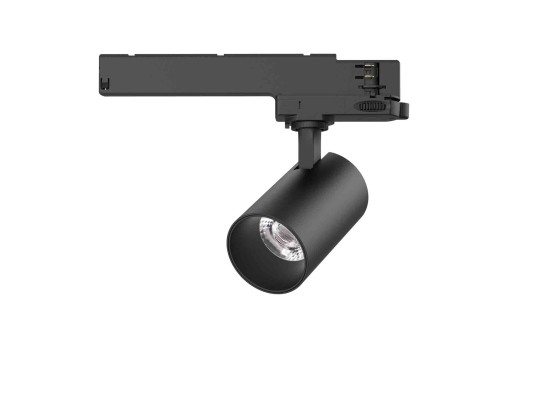

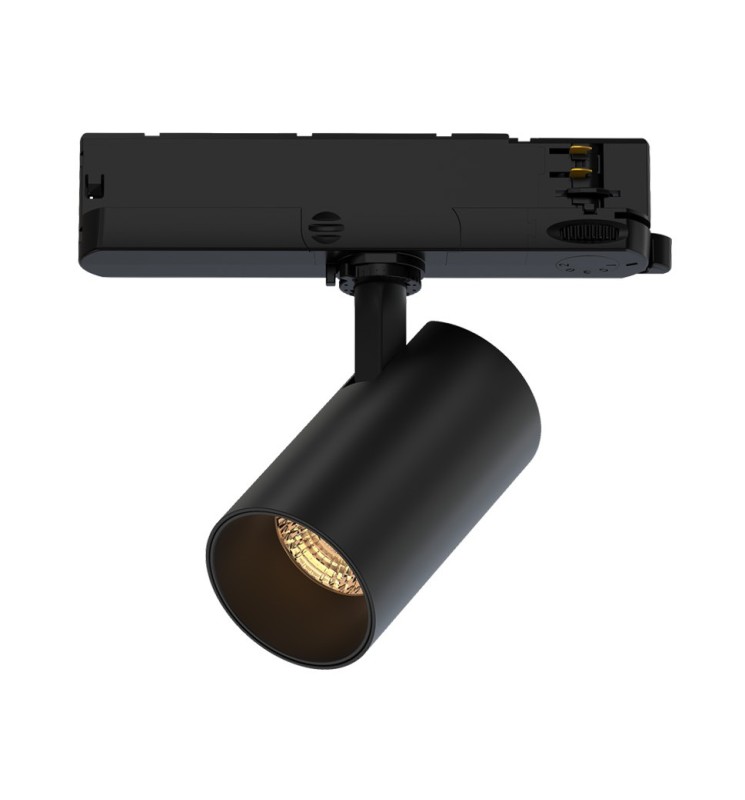

Projector 3 ignitions, 3 temperature colors and 3 powers to be selected on the product! Real flexibility for installation.
Triac dimmable. Also available from 7W to 15W, white or black
Triac dimmable. Also available from 7W to 15W, white or black
BL07302001
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >90
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 25 / 30 / 35
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 2500, 2400, 2200
- Luminous flux (lm)
- 1150
- Color temperature
- 4000K, 3000K, 3500K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Length (mm)
- 160
- Height (mm)
- 100
- Weight (kg)
- 1.02
- Product color
- Black
- Use temperature range
- -10°... +35°C
- Connection type
- Adaptor 4 wires track light
- IP (value)
- 20
- Body materials
- Aluminium, Iron
- Diffuser materials
- PMMA
- Life span duration
- L70 à 25° : 50 000 h
- Dimmable values
- Triac
- Tilt angle
- 360
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B16A circuit breaker
- 104
Projector 3 ignitions, 3 temperature colors and 3 powers to be selected on the product! Real flexibility for installation.
Triac dimmable. Also available from 7W to 15W, white or black
Triac dimmable. Also available from 7W to 15W, white or black
