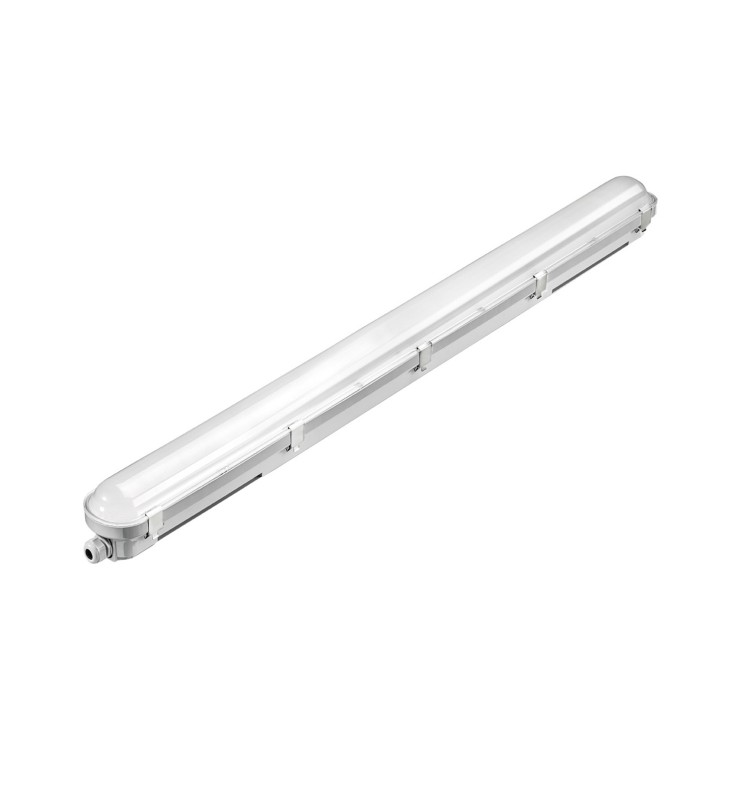

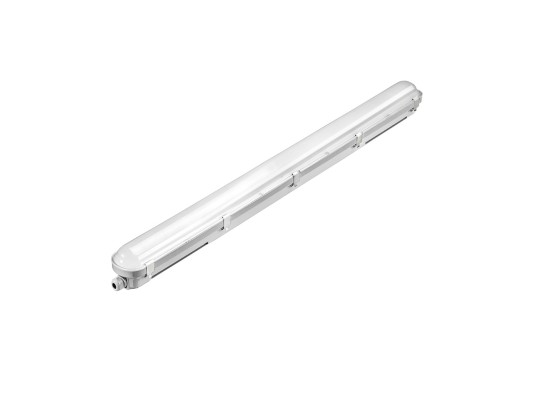

TRIPROOF TECH-G2-150-60W-3CCT-IP66-WIRE-THROUGH
BL000267
Triproof LED, 3CCT, 5-year warranty, tool-free quick connectors and wire-through. Driver : Tridonic
BL000267
Data sheet
- IP
- IP66
- IRC
- >80
- Dimmable
- Non
- IK
- IK10
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 60
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 9000, 10000, 9500
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1500
- Width (mm)
- 79
- Height (mm)
- 68
- Weight (kg)
- 0
- Use temperature range
- -20°... +40°C
- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 66
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80B20 à 25° : 50 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
- ENEC certified
- Yes
