TRIPROOF LED EASY CCT-120-36W-IP65-WIRE-THROUGH
  • TRIPROOF LED EASY CCT-120-36W-IP65-WIRE-THROUGH
  • TRIPROOF LED EASY CCT-120-36W-IP65-WIRE-THROUGH
  • TRIPROOF LED EASY CCT-120-36W-IP65-WIRE-THROUGH

TRIPROOF LED EASY CCT-120-36W-IP65-WIRE-THROUGH

BL11356507

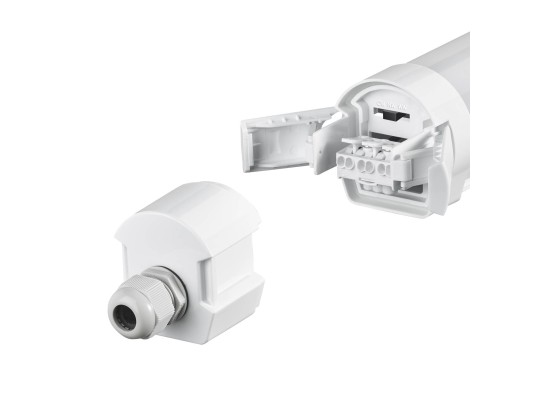

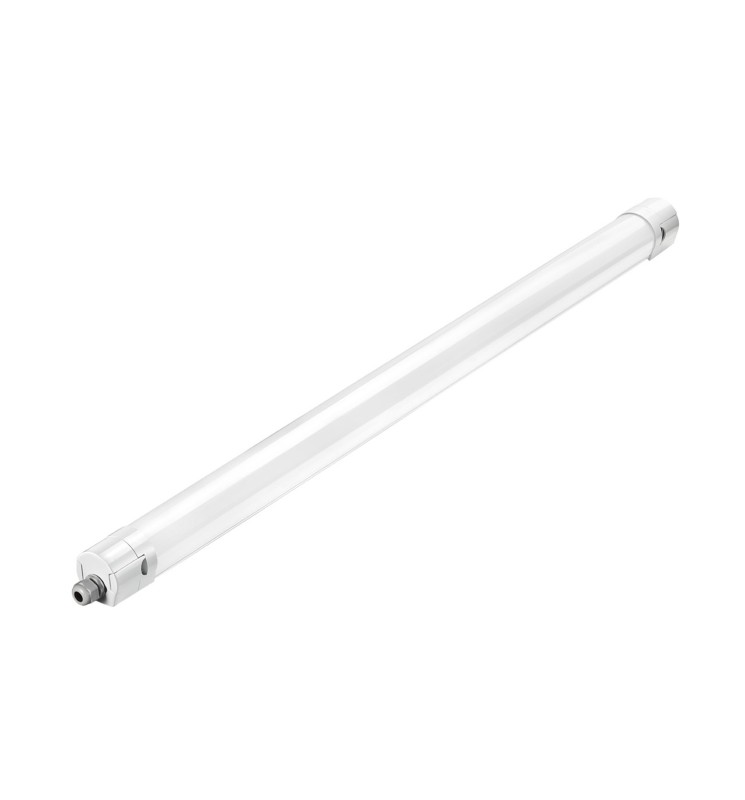

Waterproof LED luminaire, through-hole, IP65, IK08, 850°. Quick connection terminal blocks without tools, temperature color change on the product.
Phillips driver. Adapt the right light color on site together with your customer!
BL11356507
BE-LED

Data sheet

Yes
IP
IP65
IRC
>83
Dimmable
Non
IK
IK08
Energy efficiency class
E
Warranty (years)
5
Total power (W)
36
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
4000, 4200, 4400
Color temperature
4000K, 3000K, 6500K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1230
Width (mm)
59
Height (mm)
60
Weight (kg)
0.92
Product color
White
Use temperature range
-20°... +40°C
Connection type
Box with fast connector (L-N-PE)
IP (value)
65
Body materials
PC
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recoverable
Non concerné
Network frequency
50Hz
Initial SDCM
SDCM< 5
Max. lamp per B10A circuit breaker
22
Max. lamp per B16A circuit breaker
34
Max. lamp per C16A circuit breaker
54
