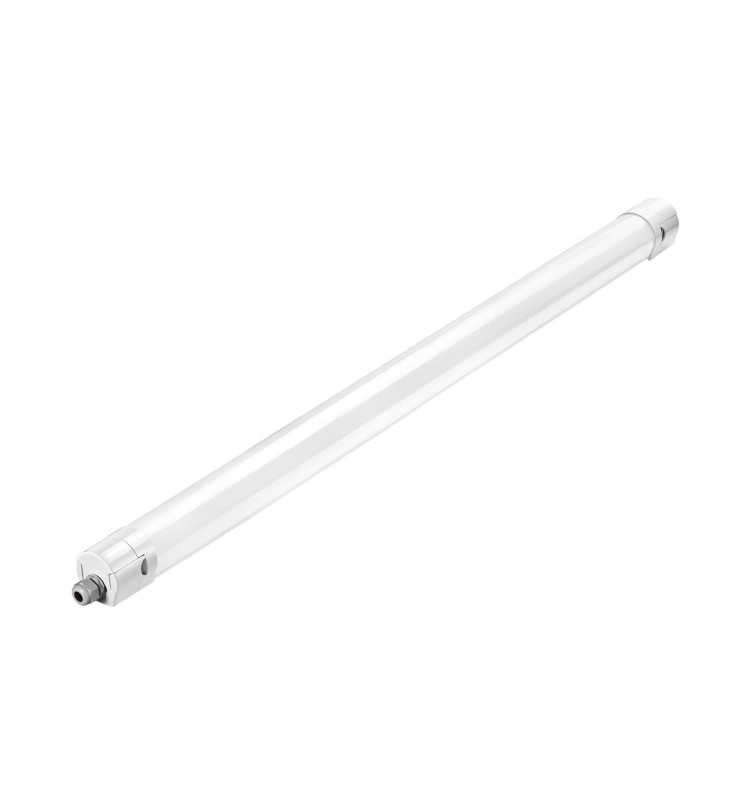

TF114-TRIPROOF EASY 150-48W-4000K WIRE-THROUGH

BL11546503

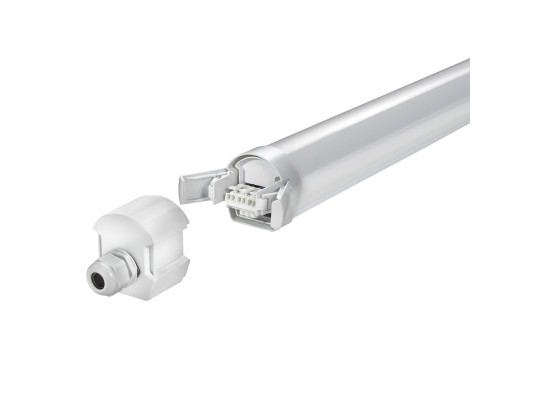

Waterproof Led strip, through-hole, IP65, IK08, tool-free quick connection terminal blocks, 850°. Driver Osram
BL11546503
BE-LED

Data sheet

Yes
Yes
IP
IP65
IRC
>85
Dimmable
Non
IK
IK08
Energy efficiency class
D
Warranty (years)
5
Total power (W)
50
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
6700
Color temperature
4000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1520
Width (mm)
59
Height (mm)
60
Weight (kg)
1
Product color
Grey
Use temperature range
-20... +50°
Connection type
Box with fast connector (L-N-PE)
IP (value)
65
Body materials
PC
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Tilt angle
120
Network frequency
50Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
20
