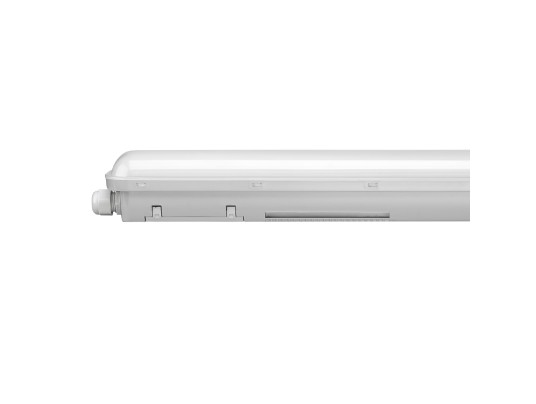

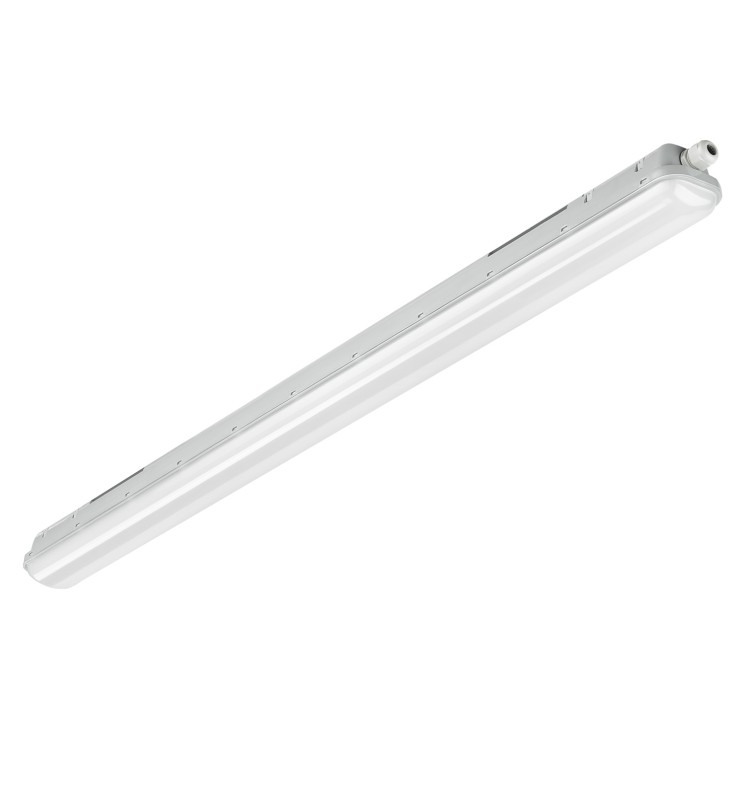

TRIPROOF LED NEW ECOPLUS-120-36W-4000K-IP65-WIRE-THROUGH
BL11366508
Economical led waterproof strip, Philips power supply, quick connectors without tools, through and 850°.
BL11366508
Data sheet
- Yes
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- E
- Warranty (years)
- 3
- Total power (W)
- 36
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 3600
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1170
- Width (mm)
- 85
- Height (mm)
- 65
- Weight (kg)
- 1.24
- Product color
- Grey
- Use temperature range
- -20°... +40°C

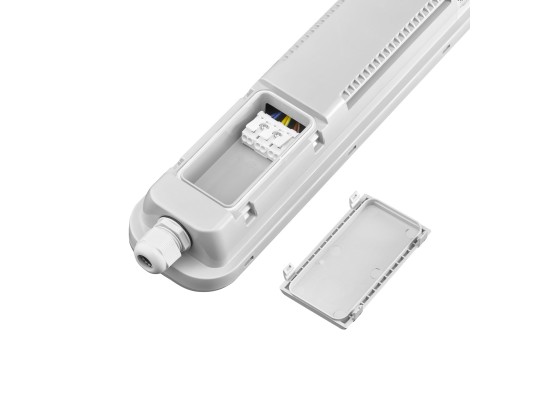

- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 65
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 20
Economical led waterproof strip, Philips power supply, quick connectors without tools, through and 850°.
