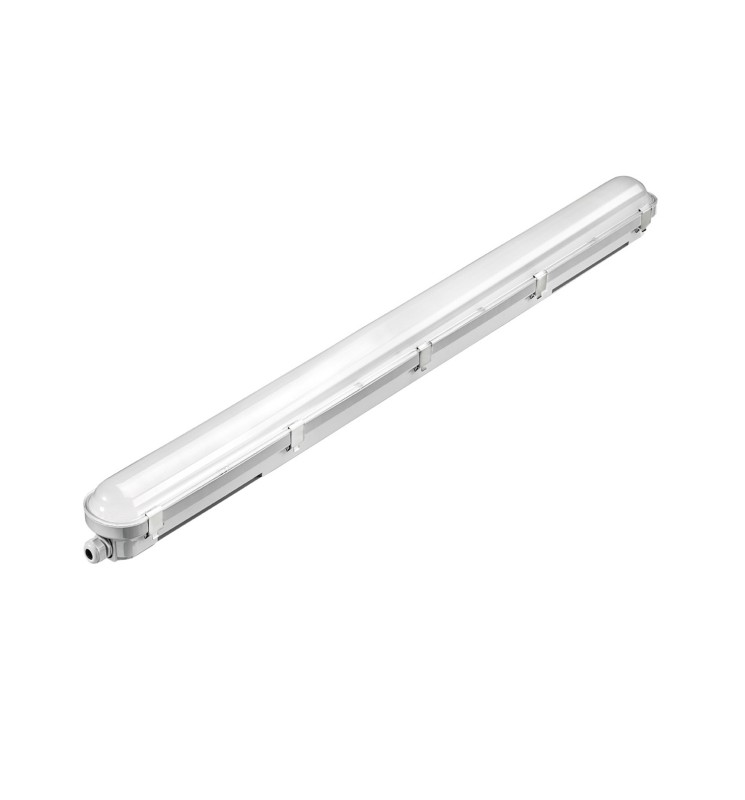

TRI-PROOF TECH-120-37W-4000K-THROUGH
BL11362105

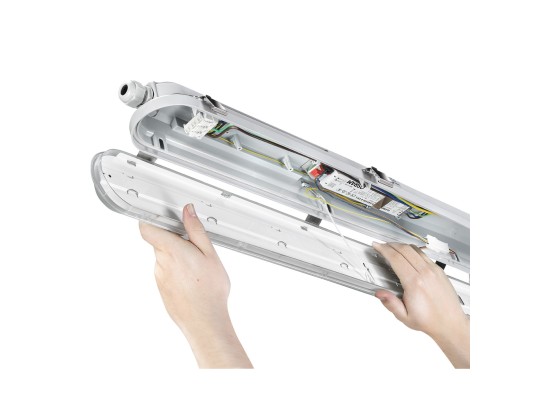

Waterproof LED strip, removable plate, 5-year warranty, Osram power supply, tool-free, through and 850° quick connectors.
BL11362105
Data sheet
- Yes
- IP
- IP66
- IRC
- >80
- Dimmable
- Non
- IK
- IK10
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 37
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 115
- Luminous flux (lm)
- 5000
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 22
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1230
- Width (mm)
- 85
- Height (mm)
- 80
- Weight (kg)
- 1.52
- Product color
- Grey
- Use temperature range
- -25°... +40°C
- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 66
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80B10 à 25° : 50 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 15
- Max. lamp per B16A circuit breaker
- 20
- Max. lamp per C16A circuit breaker
- 30
