Rupture de stock

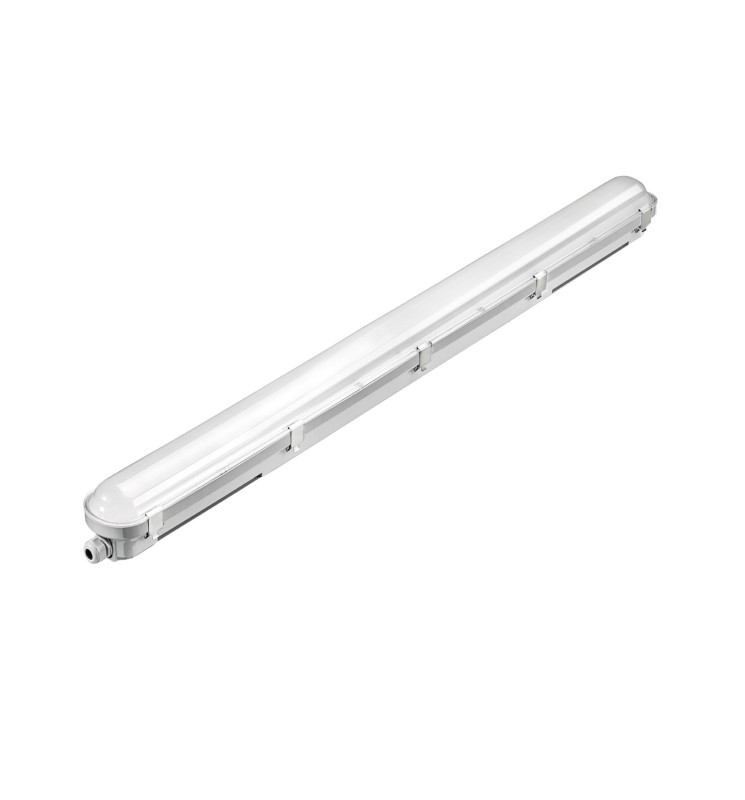

TRI-PROOF TECH-SENSOR-120-22W-4000K-IP66-TRAVERSAL

Reference: BL11362106

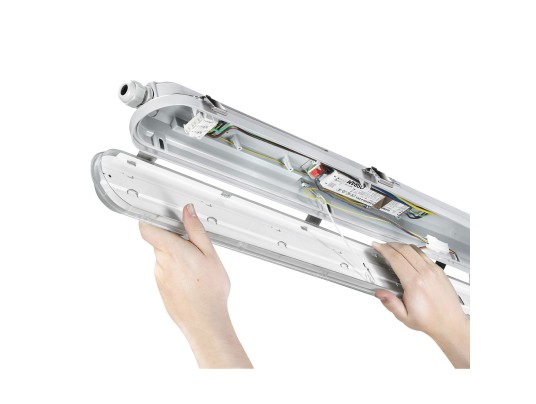

Waterproof LED strip with HF detector, removable plate, 5-year warranty, Osram power supply, tool-free quick connector, through and 850°.
Detector with extinction warning

I accept the terms and conditions and the privacy policy

Product Details
Attachments

Reference : BL11362106

Brand : BE-LED

Data sheet

: Yes
IP: IP66
IRC: >80
Dimmable: Non
IK: IK10
Energy efficiency class: D
Warranty (years): 5
Total power (W): 22
Electric class: I
Power factor: >0.95
Rated voltage: 230V
Light beam spread (°): 115
Luminous flux (lm): 3000
Color temperature: 4000K
Safety group (EN62778): RG0
Unified Glare Rating (UGR): < 22
Driver included: Yes
Including the light source: Yes
Light source type: SMD
Tiltable: Non
Length (mm): 1230
Width (mm): 85
Height (mm): 80
Weight (kg): 1.5
Product color: Grey
Use temperature range: -25°... +40°C
Connection type: Box with fast connector (L-N-PE)
IP (value): 66
Body materials: PC
Diffuser materials: PC
Life span duration: L80B20 à 25° : 50 000 h
Detector: Haute fréquence
Recoverable: Non concerné
Network frequency: 50Hz
Initial SDCM: SDCM< 4
Max. lamp per B10A circuit breaker: 15
Max. lamp per B16A circuit breaker: 20
Max. lamp per C16A circuit breaker: 30

Technical file.pdf

Download (393.99KB)

Setup guide.pdf

Download (1.91MB)
