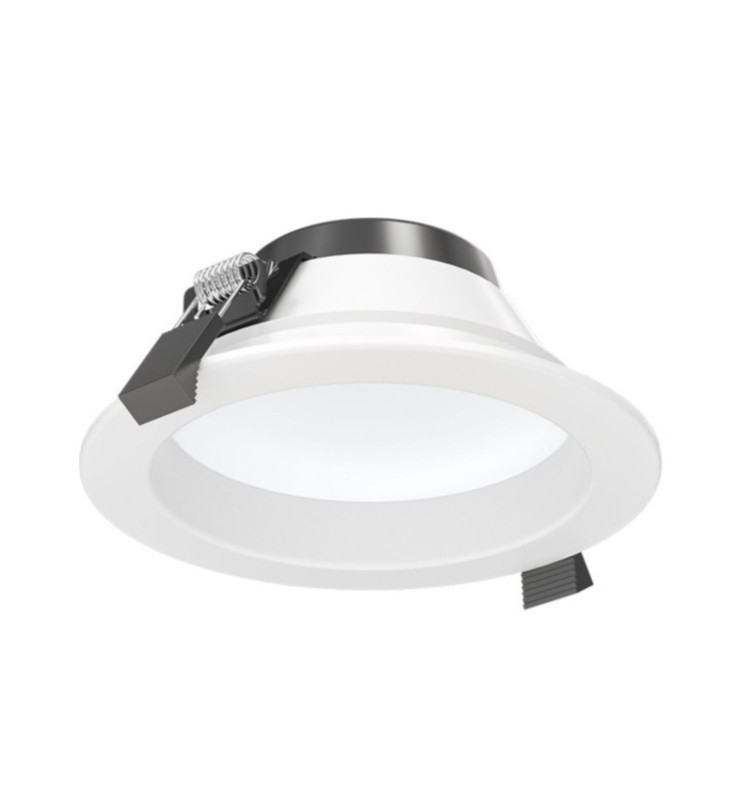

CORE PRISM 3CCT-12W-IP44F-145MM

Data sheet

IP

IP20, IP44 facade

IRC

>80

Dimmable

Non

IK

IK07

Energy efficiency class

D

Warranty (years)

5

Total power (W)

12

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

60

Luminous flux (lm)

1250, 1300, 1200

Color temperature

4000K, 3000K, 5700K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 19*

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Height (mm)

61

Weight (kg)

0.25

Min. recessed diameter (mm)

120

Max. recessed diameter (mm)

130

Recessed diameter

120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130

Product color

White

Use temperature range

-20°... +45°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

20, 44

Body materials

Aluminium

Diffuser materials

PC PRISM

Life span duration

L70B10 : 100 000 h, L90B10 : 50 000 h

Cable length

45 cm

Recoverable

Insulation material except driver

Network frequency

50Hz

Initial SDCM

SDCM< 6

Max. lamp per B10A circuit breaker

33

Max. lamp per B16A circuit breaker

52

Max. lamp per C16A circuit breaker

82
