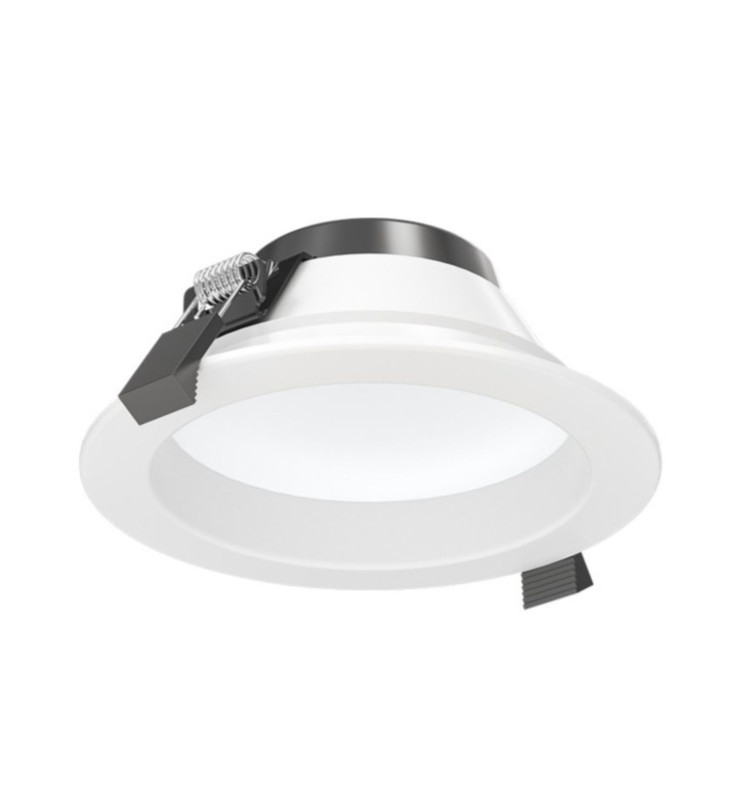

CORE PRISM 3CCT-25W-IP44F-235MM-WHITE
  • CORE PRISM 3CCT-25W-IP44F-235MM-WHITE

CORE PRISM 3CCT-25W-IP44F-235MM-WHITE

BL000321
Super slim high-efficiency LED downlight, anti-glare prism diffuser, interchangeable CCT 3000/4000/5700K, IP54 front.
Ideal for offices, shops, hotels, and public spaces. Can be covered with any insulation.
BL000321
BE-LED

Data sheet

IP
IP20, IP44 facade
IRC
>80
Dimmable
Non
IK
IK07
Energy efficiency class
D
Warranty (years)
5
Total power (W)
25
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
60
Luminous flux (lm)
2400, 2800, 2500
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19*
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
75
Weight (kg)
0.5
Min. recessed diameter (mm)
192
Max. recessed diameter (mm)
210
Recessed diameter
209, 193, 194, 210, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208, 192
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-N-PE)
IP (value)
20, 44
Body materials
Aluminium
Diffuser materials
PC PRISM
Life span duration
L70B10 : 100 000 h, L90B10 : 50 000 h
Cable length
45 cm
Recoverable
Loose fill, sprayed or blown insulation mat. Not driver
Network frequency
50Hz
Initial SDCM
SDCM< 6
Max. lamp per B10A circuit breaker
25
Max. lamp per B16A circuit breaker
40
Max. lamp per C16A circuit breaker
68
