TUTTI-DOWNLIGHT-3CCT-12W-IP54
BL000055

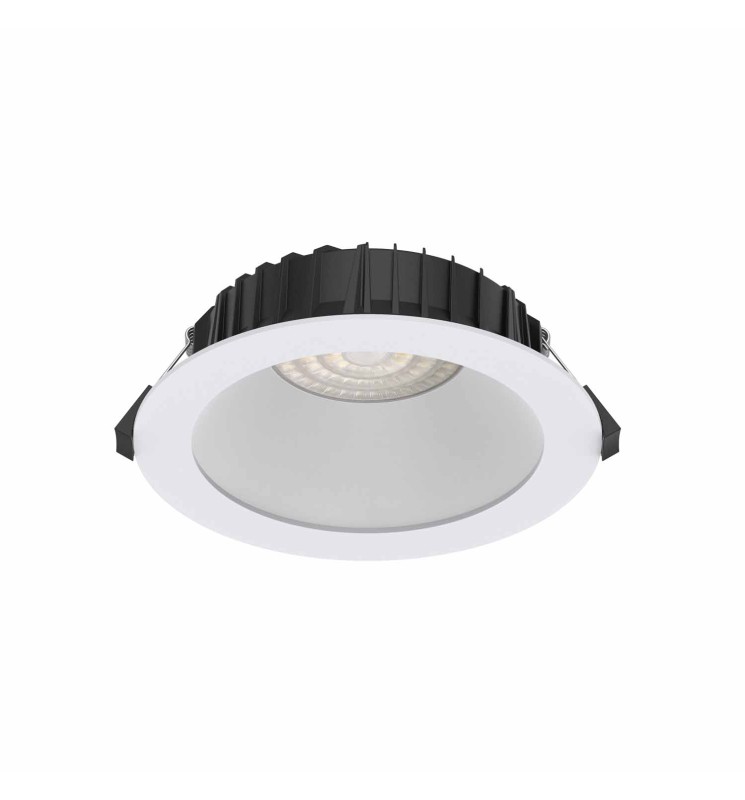

White reflector downlight. Very good uniformity, compatible with downlight detectors from the same range!
BL000055
Data sheet
- IP
- IP40, IP54 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 12
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 1500, 1600
- Luminous flux (lm)
- 26000
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 63
- Weight (kg)
- 0.46
- Min. recessed diameter (mm)
- 160
- Max. recessed diameter (mm)
- 170
- Recessed diameter
- 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 160
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fast connect
- IP (value)
- 40, 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 60
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
