TUTTI-DOWNLIGHT-3CCT-SENSOR-12W-IP44
  • TUTTI-DOWNLIGHT-3CCT-SENSOR-12W-IP44
  • TUTTI-DOWNLIGHT-3CCT-SENSOR-12W-IP44

TUTTI-DOWNLIGHT-3CCT-SENSOR-12W-IP44

BL000054

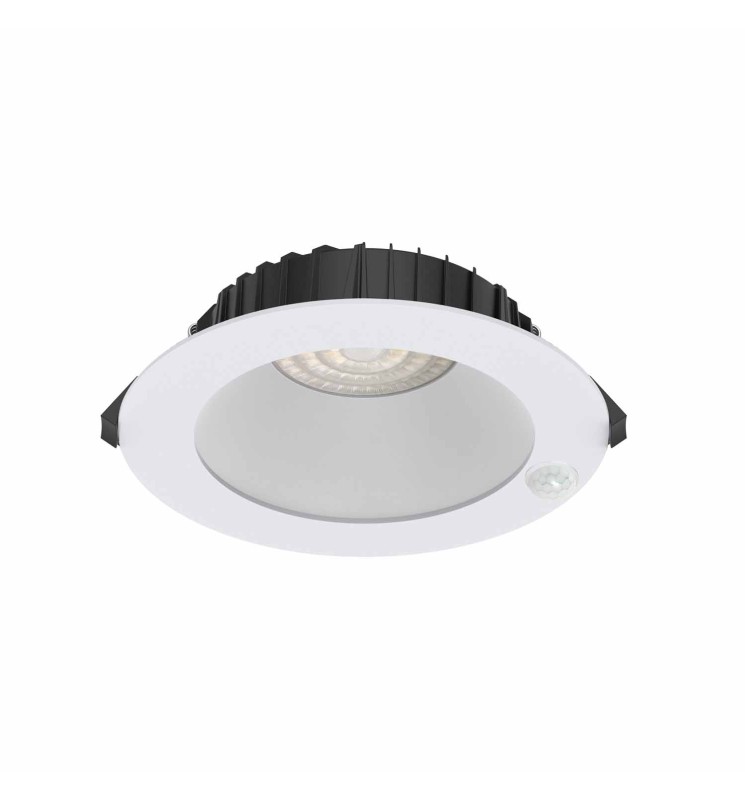

White reflector downlight with integrated detector. Very good uniformity, compatible with downlights without detectors from the same range!
Master/Slave with TUTTI BL000055 up to 6 slave luminaires.
BL000054
BE-LED

Data sheet

Yes
IP
IP40, IP44 facade
IRC
>80
Dimmable
Non
IK
IK04
Energy efficiency class
C
Warranty (years)
5
Total power (W)
12
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
60
Luminous flux (lm)
1550, 1450
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG0
Driver included
Non
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
63
Weight (kg)
0.48
Min. recessed diameter (mm)
160
Max. recessed diameter (mm)
170
Recessed diameter
168, 169, 170, 160, 161, 162, 163, 164, 165, 166, 167
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-N)
IP (value)
40, 44
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Detector
Infra rouge
Recessed depth under BA13 (mm)
60
Recoverable
Insulation material except driver
Network frequency
50Hz
Initial SDCM
SDCM< 5
