LINE 25W-3000K-36-DIM-WHITE
  • LINE 25W-3000K-36-DIM-WHITE
  • LINE 25W-3000K-36-DIM-WHITE
  • LINE 25W-3000K-36-DIM-WHITE
  • LINE 25W-3000K-36-DIM-WHITE
  • LINE 25W-3000K-36-DIM-WHITE

LINE 25W-3000K-36-DIM-WHITE

BL02252001

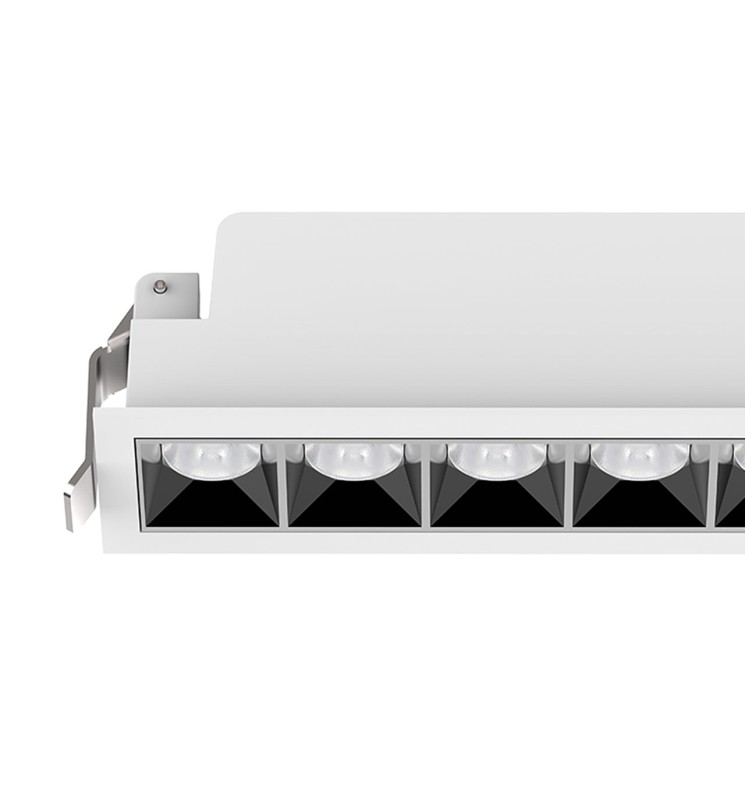

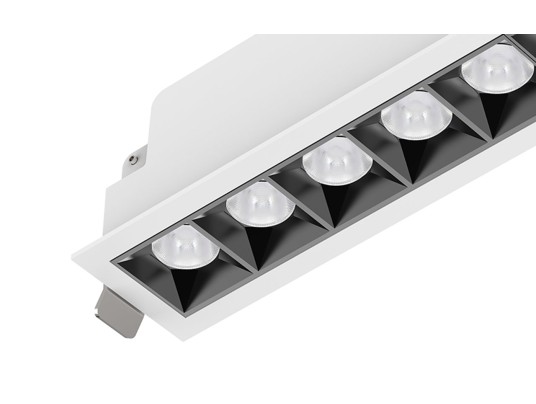

Recessed architectural led, gives depth to volumes. Low glare UGR<19, white with chrome reflector.
Appreciated by decorators for its design, it does not dazzle and brings a real contemporary touch.
BL02252001
BE-LED

Data sheet

Yes
Yes
IP
IP40
IRC
>90
Dimmable
Yes
IK
IK06

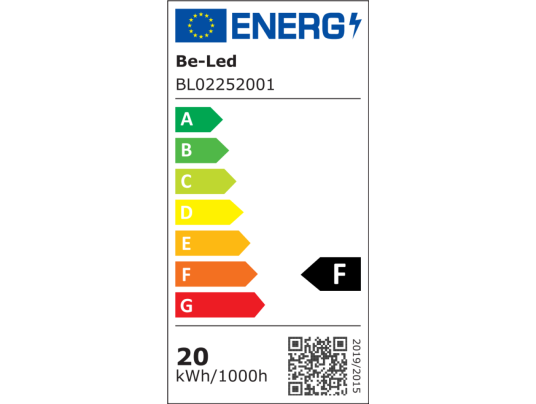

Energy efficiency class
F
Warranty (years)
3
Total power (W)
25
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
36
Luminous flux (lm)
1400
Color temperature
3000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19

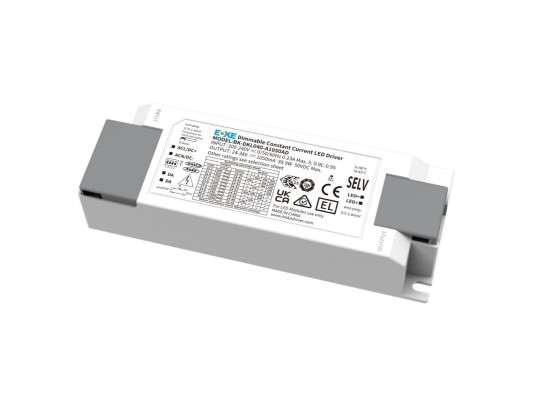

Driver included
Yes
Including the light source
Yes
Tiltable
Non
Length (mm)
280
Width (mm)
45
Height (mm)
51
Weight (kg)
0.56
Min. recessed diameter (mm)
37
Max. recessed diameter (mm)
272
Recessed diameter
171, 129, 219, 255, 139, 97, 187, 38, 77, 271, 155, 113, 203, 239, 63, 172, 226, 220, 256, 140, 98, 188, 39, 78, 272, 156, 114, 204, 240, 64, 173, 227, 221, 257, 141, 99, 189, 40, 79, 157, 115, 205, 241, 65, 66, 174, 228, 222, 258, 142, 100, 190, 41, 80, 158, 116, 206, 242, 67, 175, 229, 223, 259, 143, 101, 191, 42, 81, 159, 117, 207, 243, 86, 176, 230, 224, 260, 144, 102, 192, 47, 82, 160, 118, 208, 244, 60, 87, 177, 231, 225, 261, 145, 103, 193, 48, 83, 161, 119, 209, 245, 130, 88, 178, 232, 70, 262, 146, 104, 194, 49, 84, 162, 120, 210, 246, 247, 131, 89, 179, 233, 71, 263, 147, 105, 195, 50, 85, 163, 121, 211, 212, 248, 132, 90, 180, 234, 72, 264, 148, 106, 196, 51, 55, 164, 122, 213, 249, 133, 91, 181, 235, 73, 265, 149, 107, 197, 52, 56, 165, 123, 214, 250, 134, 92, 182, 43, 74, 266, 150, 108, 198, 53, 57, 166, 124, 215, 251, 135, 93, 183, 44, 75, 267, 151, 109, 199, 54, 58, 167, 125, 216, 252, 136, 94, 184, 45, 76, 268, 152, 110, 200, 236, 59, 168, 126, 127, 217, 253, 137, 95, 185, 46, 68, 269, 153, 111, 201, 237, 61, 169, 170, 128, 218, 254, 138, 96, 186, 37, 69, 270, 154, 112, 202, 238, 62
Product color
White
Use temperature range
-25°... +45°C
Connection type
Connector on the product
IP (value)
40
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recessed depth under BA13 (mm)
60
Recoverable
Non recouvrable
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM< 4
