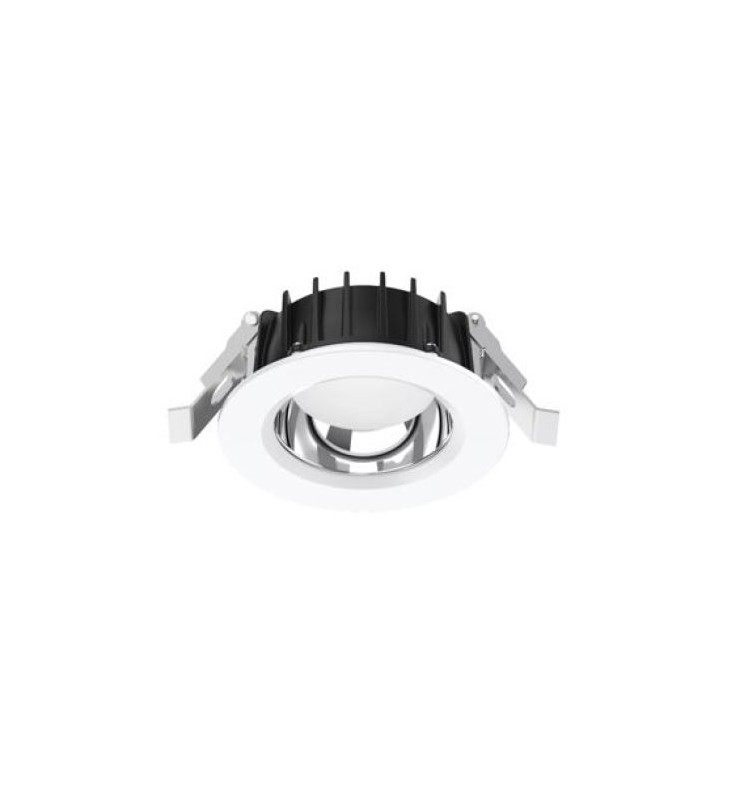

SHOWER 13W-IP65-3CCT

Data sheet

IP

IP65 facade, IP20

IRC

>80

Dimmable

Yes

IK

IK06

Energy efficiency class

E

Warranty (years)

5

Total power (W)

13

Electric class

III, II with power supply

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

75

Luminous flux (lm)

900, 800, 1000

Color temperature

4000K, 3000K, 5700K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

166

Height (mm)

51

Weight (kg)

0.38

Min. recessed diameter (mm)

90

Max. recessed diameter (mm)

100

Recessed diameter

93, 94, 95, 96, 97, 98, 99, 100, 90, 91, 92

Product color

White

Use temperature range

-25°... +45°C

Connection type

fast connector

IP (value)

20, 65

Body materials

Aluminium

Diffuser materials

Verre trempé

Life span duration

L70 à 25° : 50 000 h

Recessed depth under BA13 (mm)

50

Recoverable

Insulation material except driver

Dimmable values

Triac

Network frequency

50Hz

Initial SDCM

SDCM< 4

Max. lamp per B10A circuit breaker

83

Max. lamp per B16A circuit breaker

138

Max. lamp per C16A circuit breaker

183
