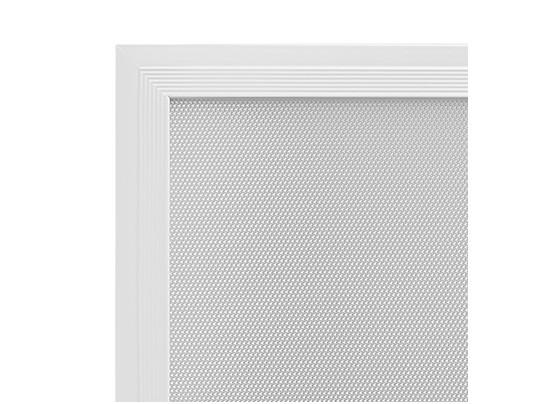

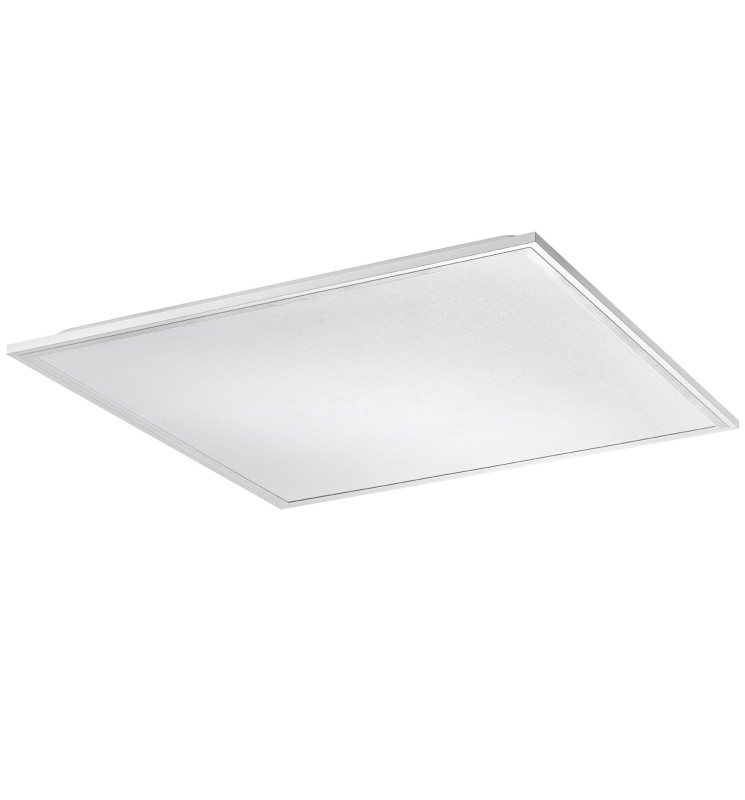

PANEL TECH-675X675-36W-3CCT-PRISM
BL000310
120lm/W micro prismatic led panel. 3 temperature colors to select on the product. 3600 lm in 3000K, 3900 lm in 4000K and 3600 lm in 6000K.
BL000310
Data sheet
- Yes
- IP
- IP20, IP40 front
- IRC
- >80
- Dimmable
- Non
- IK
- IK02
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 36
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4200, 4400, 4350
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 670
- Width (mm)
- 670
- Height (mm)
- 30
- Weight (kg)
- 0
- Product color
- White RAL9016
- Use temperature range
- -25°... +40°C
- Connection type
- Box with fast connector (L-PE-N)
- IP (value)
- 40, 20
- Body materials
- Aluminium
- Diffuser materials
- PMMA, PS Prismatic
- Life span duration
- L80B20 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
