COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE
  • COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE
  • COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE
  • COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE
  • COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE

COMFORT PANEL 16-600x600-30W-IP20-2CCT-WHITE

BL000426

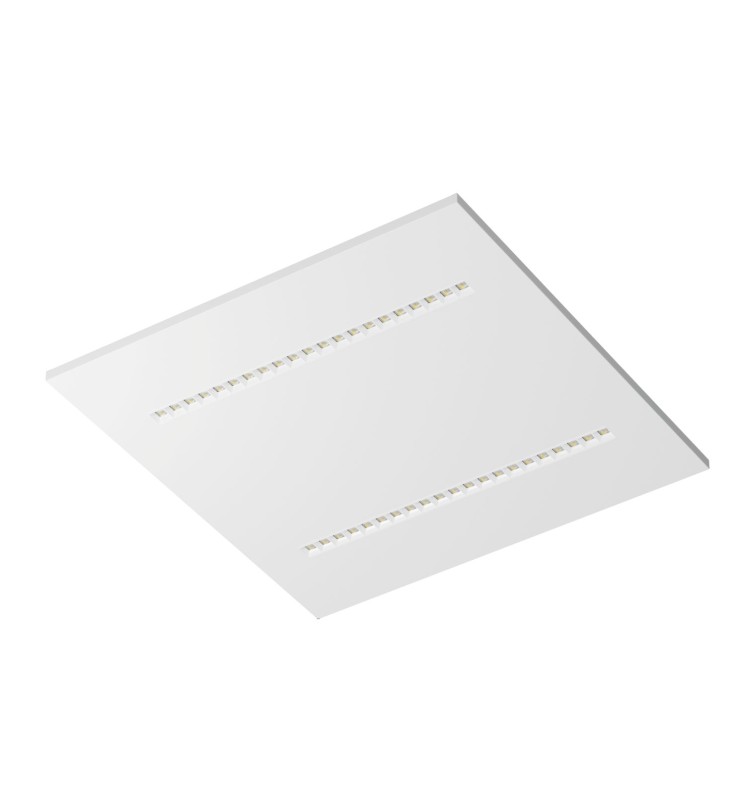

600X600 UGR<16 panel, chrome optics. Low consumption and very good visual comfort!
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí.
BL000426
BE-LED

Data sheet

Only driver
IP
IP20
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
D
Warranty (years)
5
Total power (W)
18 / 20 / 22 / 24 / 26 / 28 / 29 / 31 / 33 / 35
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
80
Luminous flux (lm)
4000, 4200
Color temperature
4000K, 3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 16
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
19
Weight (kg)
0
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-PE-N)
IP (value)
20
Body materials
Aluminium, PC
Diffuser materials
PC
Life span duration
L80B10 : 50 000 h
Cable length
50 cm
Recessed depth under BA13 (mm)
40
Recoverable
Insulation material except driver
Dimmable values
Dali, push dim
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
20
