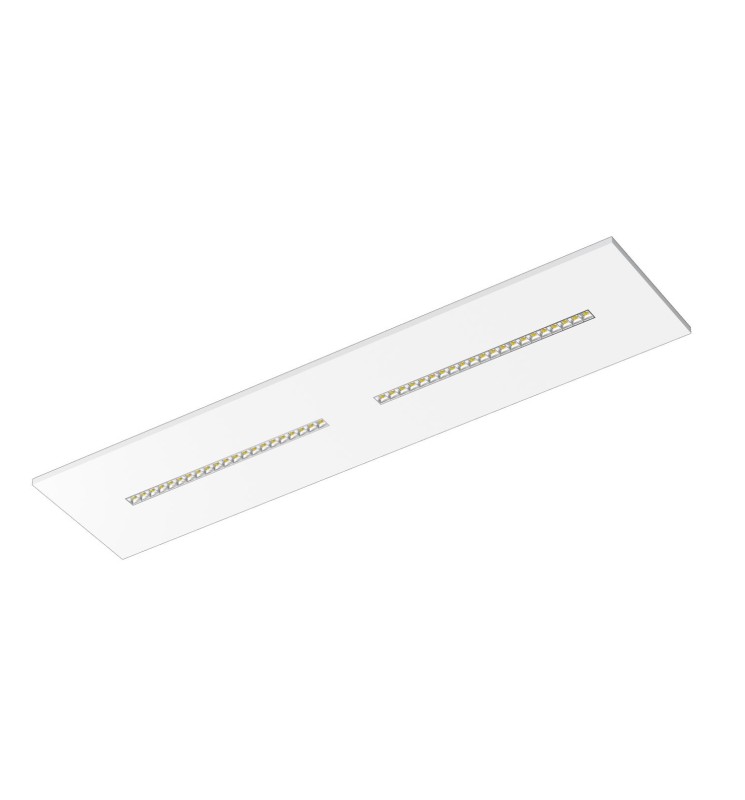

COMFORT PANEL 16-1200X300-30W-IP20-2CCT-WHITE

Data sheet

Only driver

IP

IP20

IRC

>80

Dimmable

Non

IK

IK06

Energy efficiency class

D

Warranty (years)

5

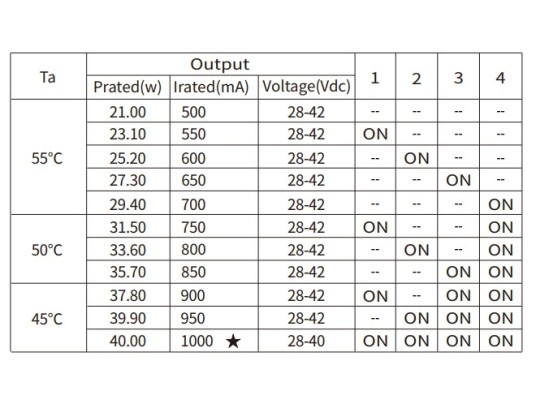

Total power (W)

21 / 23 / 25 / 27 / 30 / 31 / 34 / 36 / 38 / 40

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

80

Luminous flux (lm)

4000, 4200

Color temperature

4000K, 3000K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 16

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

1195

Width (mm)

295

Height (mm)

19

Weight (kg)

0

Product color

White

Use temperature range

-20°... +45°C

Connection type

Box with fast connector (L-PE-N)

IP (value)

20

Body materials

Aluminium, PC

Diffuser materials

PC

Life span duration

L80B10 : 50 000 h

Cable length

0

Recessed depth under BA13 (mm)

40

Recoverable

Insulation material except driver

Dimmable values

Dali, push dim

Network frequency

50Hz

Initial SDCM

SDCM< 3

Max. lamp per B10A circuit breaker

10

Max. lamp per B16A circuit breaker

15

Max. lamp per C16A circuit breaker

20
