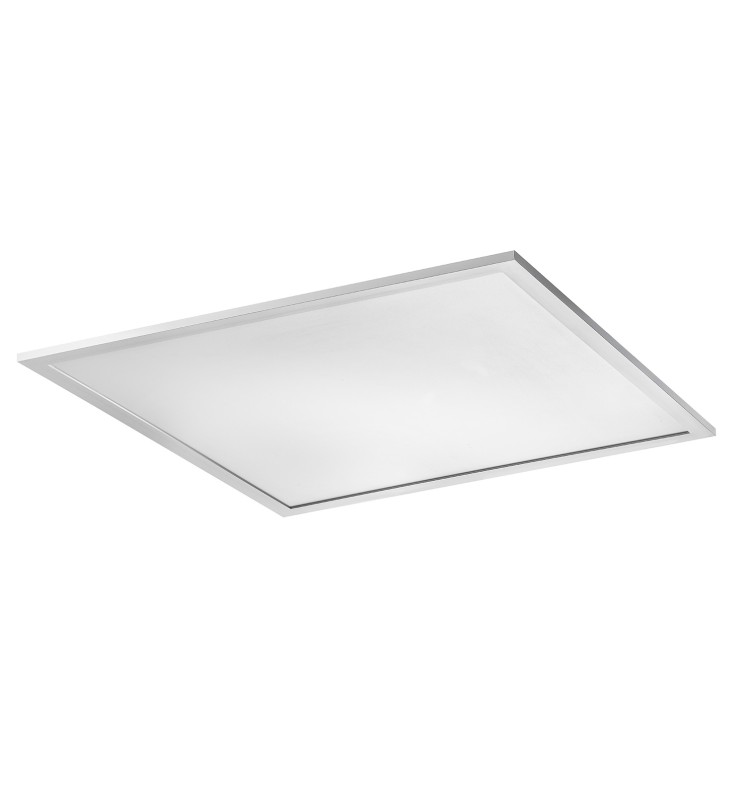

TF064-PANEL 600x600-48W-4000k-IP65 FRONT

BL04486502
Led panel IP65 facade 4800lm, ideal for kitchens, technical rooms, certain laboratories where the contribution of light will be very important
BL04486502
BE-LED

Data sheet

Yes
Yes
IP
IP65 facade, IP20
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
D
Warranty (years)
3
Total power (W)
48
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
4800
Color temperature
4000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
10
Weight (kg)
2.72
Product color
White
Use temperature range
-20... +45°
Connection type
Bornier avec repiquage
IP (value)
20, 65
Body materials
Aluminium
Diffuser materials
PC, PS
Life span duration
L70 à 25° : 50 000 h
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
15
Max. lamp per B16A circuit breaker
20
Max. lamp per C16A circuit breaker
25
