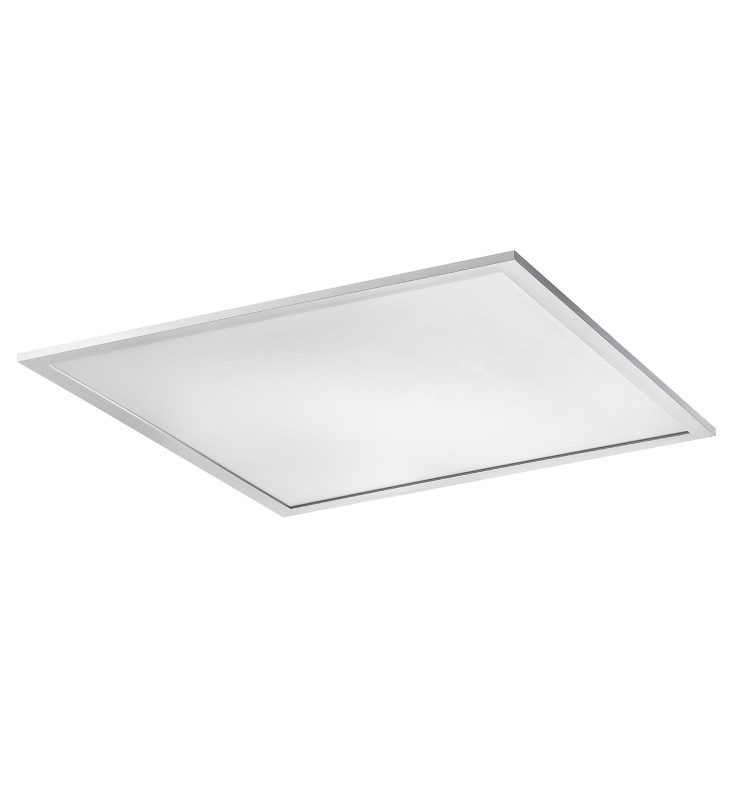

PANEL BACKLIT PRO 675x675-36W-4000K-WHITE-PRISM
BL04362006
Led panel UGR 19 with prismatic diffuser, safety rope and connection terminal block transplantable without tools, LGP in PMMA guaranteed for 5 years.
BL04362006
Data sheet
- Yes
- Yes
- IP
- IP20, IP40 front
- IRC
- >80
- Dimmable
- Non
- IK
- IK07
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 36
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 4450
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 670
- Width (mm)
- 670
- Height (mm)
- 10
- Weight (kg)
- 2.58
- Min. recessed diameter (mm)
- 670
- Max. recessed diameter (mm)
- 670
- Recessed diameter
- 670
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 40, 20
- Body materials
- Aluminium, PC
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 20
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
Led panel UGR 19 with prismatic diffuser, safety rope and connection terminal block transplantable without tools, LGP in PMMA guaranteed for 5 years.
