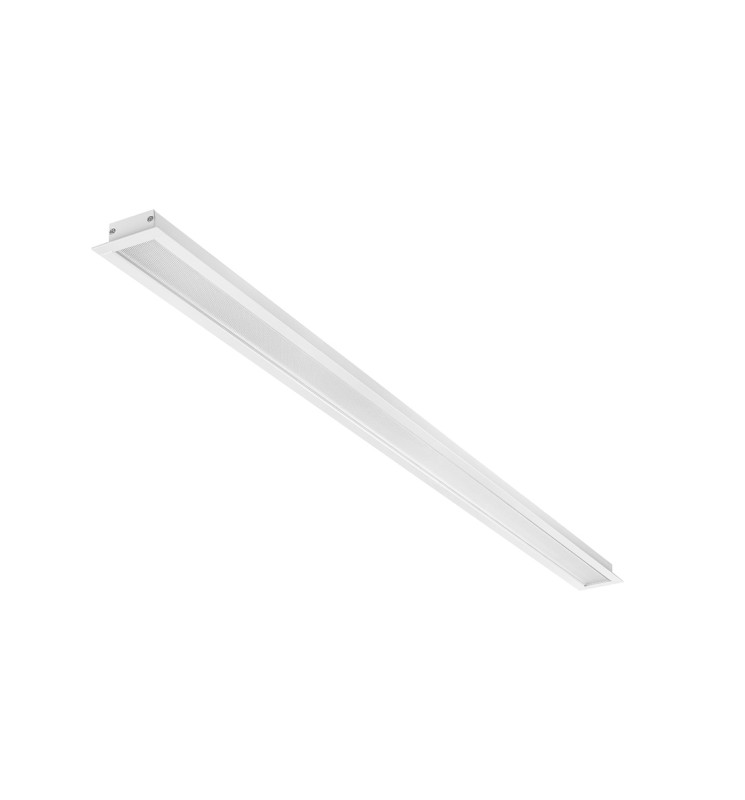

OFFICELINE 120-WHITE-30W-3CCT-DALI-RECESSED-OPAL
BL06272004
OFFICELINE 120 white micro-prismatic downlight in DALI 3CCT version, ideal for office lighting.
BL06272004
Data sheet
- IP
- IP20
- IRC
- >85
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 27
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 100
- Luminous flux (lm)
- 3200
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1144
- Width (mm)
- 63
- Height (mm)
- 25
- Weight (kg)
- 1.12
- Product color
- White
- Connection type
- Fil à connecter
- IP (value)
- 20
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 30 cm
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 22
- UKCA certified
- Yes
OFFICELINE 120 white micro-prismatic downlight in DALI 3CCT version, ideal for office lighting.
