CAMUS UGR19 25W-IP44-4000K-WHITE
TR02254405B

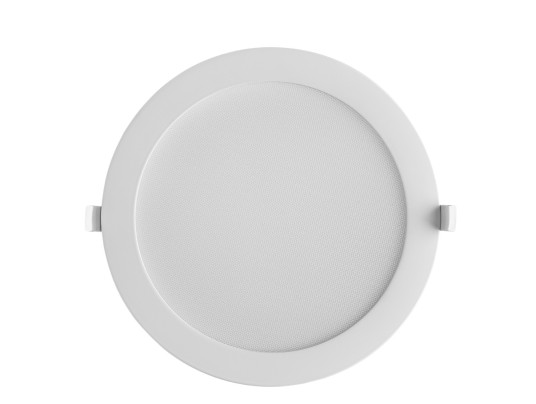

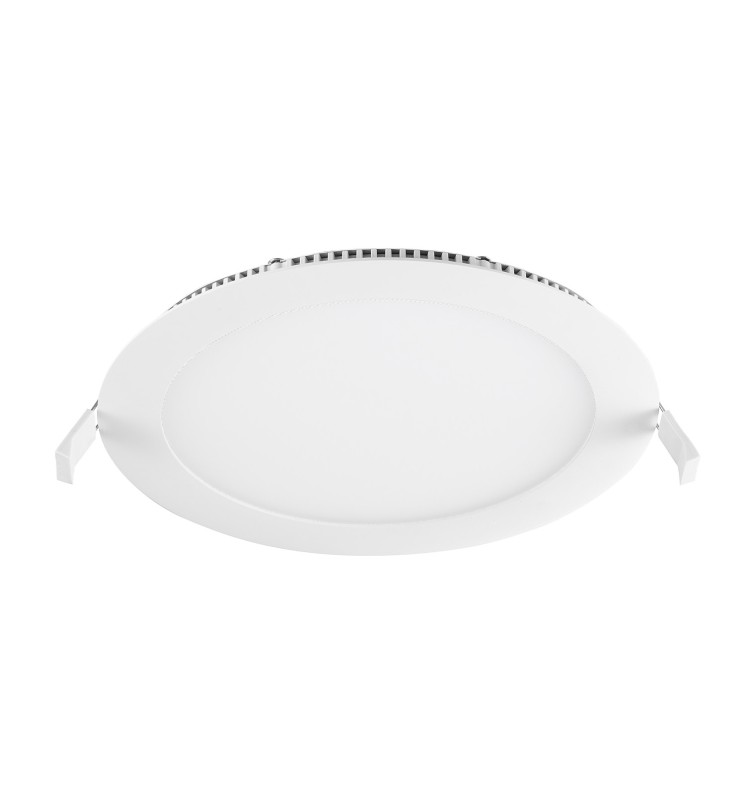

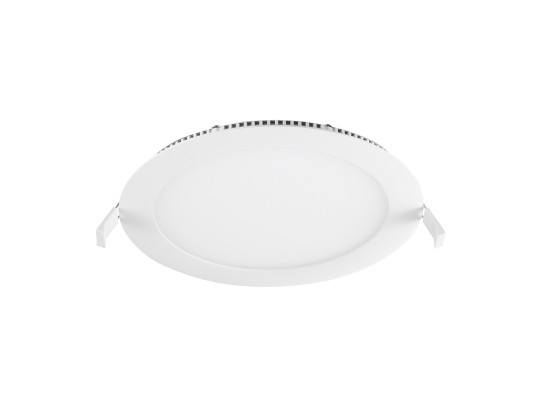

Thin downlight with prismatic diffuser.
TR02254405B
Data sheet
- Yes
- Yes
- IP
- IP20, IP44 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 25
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3050
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 13
- Weight (kg)
- 0.75
- Min. recessed diameter (mm)
- 220
- Max. recessed diameter (mm)
- 235
- Recessed diameter
- 227, 228, 229, 230, 231, 232, 233, 234, 235, 220, 221, 222, 223, 224, 225, 226
- Product color
- White
- Use temperature range
- -25°... +40°C
- Connection type
- Fil à connecter
- IP (value)
- 20, 44
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 10 cm
- Recessed depth under BA13 (mm)
- 35
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
