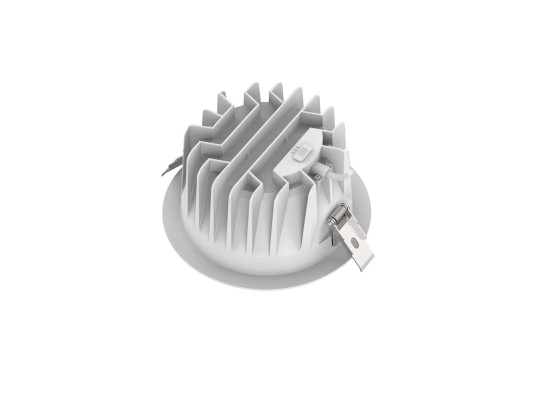

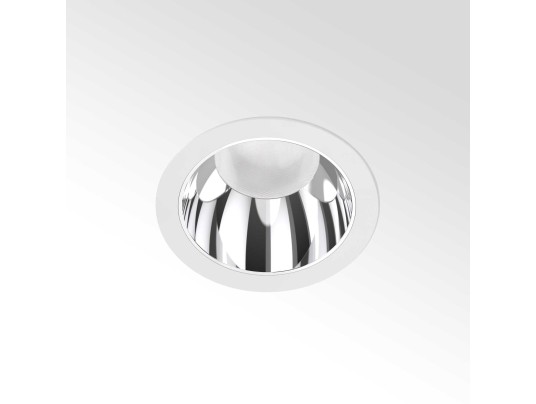

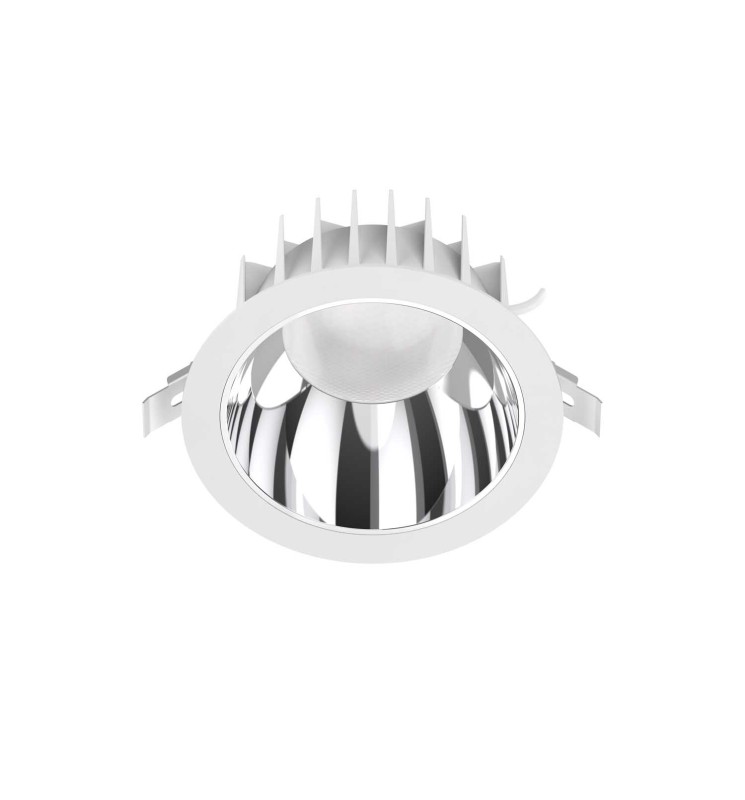

VISUAL-25W-IP54-3CCT

Data sheet

Yes

IP

IP54 facade

IRC

>80

Dimmable

Non

IK

IK06

Energy efficiency class

D

Warranty (years)

5

Total power (W)

25

Electric class

III, II with power supply

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

63

Luminous flux (lm)

2700

Color temperature

5700K, 4000K, 3000K

Safety group (EN62778)

RG1

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Height (mm)

107

Weight (kg)

1.08

Min. recessed diameter (mm)

200

Max. recessed diameter (mm)

220

Recessed diameter

205, 206, 207, 208, 209, 210, 211, 212, 213, 214, 215, 216, 200, 217, 201, 218, 202, 219, 203, 204, 220

Product color

White RAL9016

Use temperature range

-25°... +45°C

Connection type

Box with fast connector (L-N)

IP (value)

54

Body materials

Aluminium

Diffuser materials

PC

Life span duration

L90 à 25° : 50 000 h, L70 à 25° : 100 000 h

Recessed depth under BA13 (mm)

120

Recessed depth under BA13 (mm)

110

Recoverable

Non recouvrable

Network frequency

50Hz

Initial SDCM

SDCM< 4
