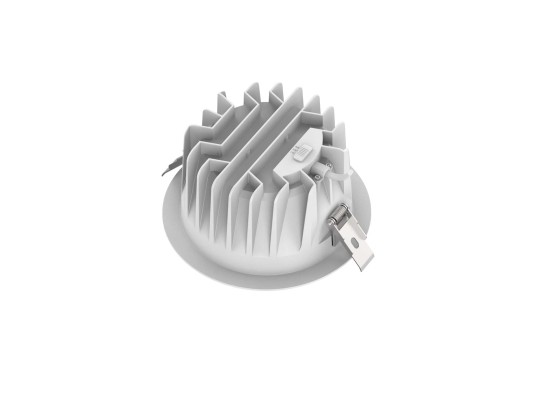

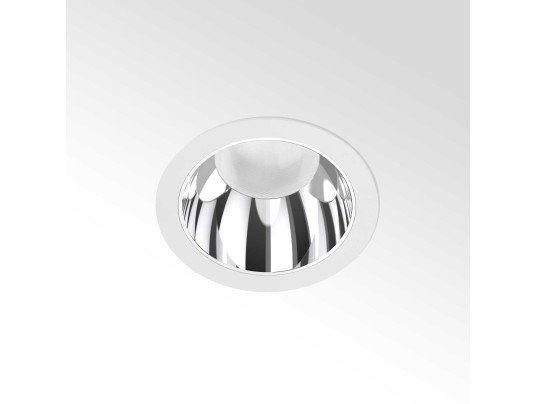

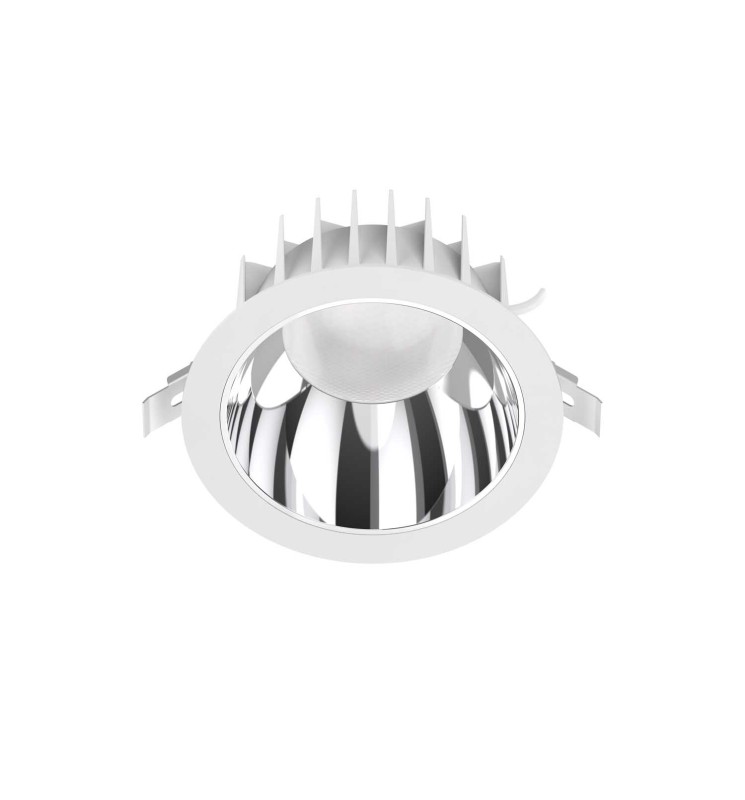

VISUAL-18W-IP54-3CCT
BL02185410
Low-glare LED downlight, 3CCT and IP54, ideal for the service sector: hallway, meeting room. Option in Dali possible
Visual range
Visual range
BL02185410
Data sheet
- Yes
- Yes
- IP
- IP54 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 18
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 63
- Luminous flux (lm)
- 1650, 1550
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 77
- Weight (kg)
- 0.48
- Min. recessed diameter (mm)
- 125
- Max. recessed diameter (mm)
- 135
- Recessed diameter
- 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 125
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 80
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 16
- Max. lamp per B16A circuit breaker
- 24
- Max. lamp per C16A circuit breaker
- 32
