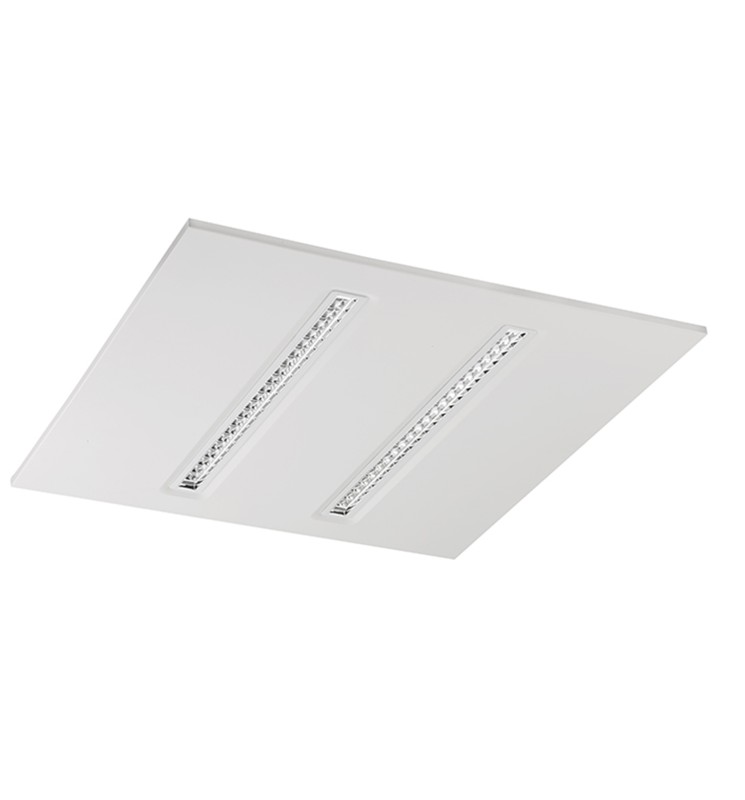

PANEL CONFORT UGR 16-600x600-28W-IP20-4000K-WHITE
TR04282001
UGR 16 600x600 panel in 4000K. Low consumption and very good visual comfort. Ideal for rooms with demanding or intense visual work.
Supplied with adequate driver.
Supplied with adequate driver.
TR04282001
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 28
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 85
- Luminous flux (lm)
- 3400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 16
- Driver included
- Yes
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 38
- Weight (kg)
- 2.82
- Product color
- White
- Use temperature range
- -20°... +45°C
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L80B10 : 50 000 h
- Recessed depth under BA13 (mm)
- 40
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 20
