TF062-PANEL ECOPLUS-600x600-36W-4000K

BL04362002

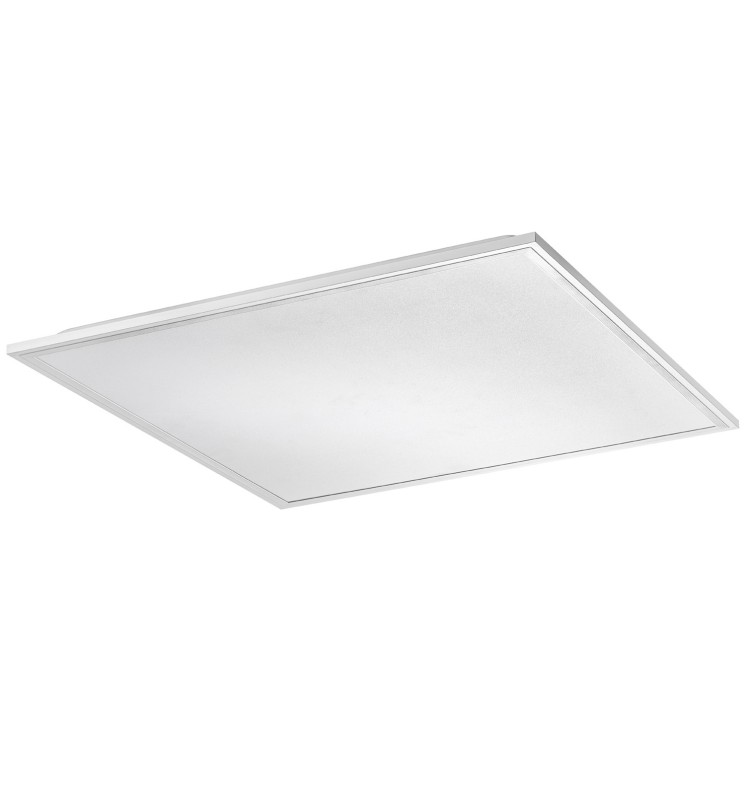

Economical LED panel, with connection terminal block and safety cable, surface or suspension mounting, aluminium, pc UGR<19
BL04362002
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK04
Energy efficiency class
D
Warranty (years)
3
Total power (W)
36
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
3400
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Non
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
32
Weight (kg)
2.08
Product color
White
Use temperature range
-20°... +45°C
Connection type
Bornier avec repiquage
IP (value)
20
Body materials
Aluminium
Life span duration
L70 à 25° : 50 000 h
Cable length
20 cm
Recoverable
Insulation material except driver
Network frequency
50Hz
Initial SDCM
SDCM< 4
