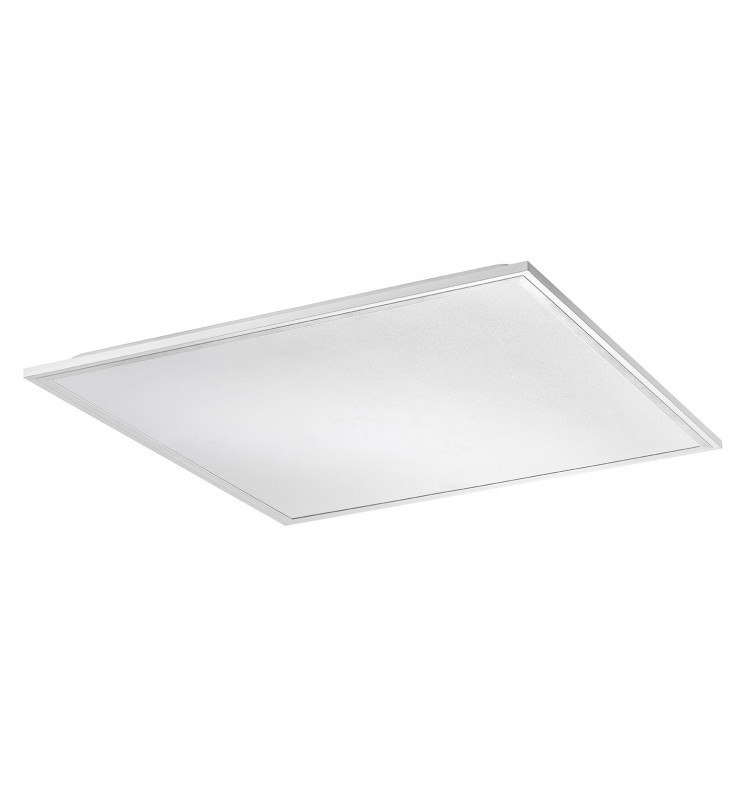

TF011-PANEL ECO UGR19 600x600-36W-3480lm-WHITE FRAME-4000K

Data sheet

Yes

IP

IP20, IP40 front

IRC

>80

Dimmable

Non

IK

IK07

Energy efficiency class

D

Warranty (years)

3

Total power (W)

36

Electric class

III, II with power supply

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

110

Luminous flux (lm)

3500

Color temperature

4000K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 19*

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

595

Width (mm)

595

Height (mm)

8

Weight (kg)

2.32

Product color

White

Use temperature range

-20°... +50°C

Connection type

Bornier avec repiquage

IP (value)

40, 20

Body materials

Aluminium, PC

Diffuser materials

PC

Life span duration

L70 à 25° : 50 000 h

Cable length

20 cm

Recoverable

Insulation material except driver

Network frequency

50Hz, 60Hz

Initial SDCM

SDCM< 6

UKCA certified

Yes
